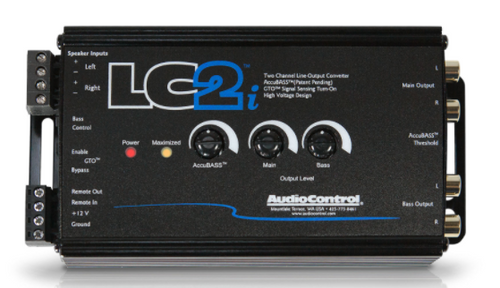

AudioControl LC2i 2 Channel Line Output Converter

$189.95
$139.95
SKU:
LC2i
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

AudioControl LC2i 2 Channel Line Output Converter

$189.95
$139.95

About: AudioControl LC2i 2 Channel Line Output Converter

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

Features:

  • Two channels of Active speaker level inputs – Accept 400 watt signals per channel
  • Fixed and variable outputs with discrete level controls
  • AccuBASS® processing for correction of bass roll-off
  • GTOTM Signal Sensing
  • Input For Optional Remote Level Control
  • Compact design

 FAQ

  • Does the LC2i require power? Yes, the LC2i is an active line output converter and should be connected to the battery  for constant 12 V and to your common ground for after market amps and processors.
  • Do I need to find a remote turn on lead? No, the LC2i has GTO Signal Sensing, which will turn the unit on when it detects signal at the input from your factory amp/powered head unit.
  • For more in depth installation help, check out our FAQ on Facebook (Facebook membership not required): LC2i FAQ

Specifications:

Inputs

  • Speaker Level Input: 1 (2 channels)
  • Maximum Speaker Level Input: 400W per channel at 4Ω
  • Input Impedance: 20kΩ
Outputs
  • Preamp Outputs: 2 (2 channels main, 2 channels bass)
  • Maximum Output Level: 9.5Vrms/13V peak
  • Output Impedance: 150Ω
Performance
  • Total Harmonic Distortion: 0.01%
  • Signal to Noise: >110dB
  • Frequency Response: 10Hz-100kHz ±1 dB
Control
  • Remote In
  • 12VDC Remote Out (always active when unit is on)
General
  • Current Draw: 150mA
  • Recommended Fuse Rating: 1A
Weights & dimensions
  • Dimensions: 5.4″L x 3.25″D x 1.5″H (6.5″L including mounting brackets)
  • Weight: 1.0lbs (0.5kg)
What's in the Box:
  • LC2i
  • Speaker and Power connectors
  • Manual
  • Warranty Card
