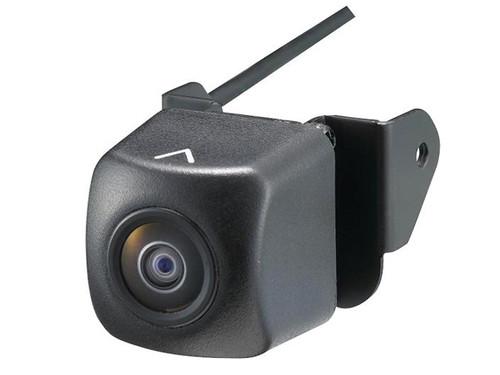

Clarion CC520 Universal Rear-View Camera

Clarion CC520 Universal Rear-View Camera

Usually Ships in 1-2 Days
Calculated at Checkout

Compatibility: The Clarion universal rear-view camera (CC510) can be used as a back-up camera with Clarion in-dash monitors. However, the standard composite video output (RCA plug) extension cable makes it compatible with virtually any mobile video monitor.

Waterproof Chassis: The camera is built into a compact waterproof (IP67), UV-protected (ASTM D4329) aluminum case, making it perfect for mounting outside the vehicle.

CMOS Optics: The Clarion universal rear-view camera employs a 1/4" color CMOS image sensor (342,016 pixels) with auto iris and automatic white balance to deliver a high quality picture.

Super Wide Viewing Angle: The 150° horizontal and 90° vertical viewing angles provide an excellent near field view of anything behind you. The camera gives you a mirror image for rear view confirmation.

Illumination Range: The rear-view camera features a minimum subject illumination of 0.5 lux (at 50IRE). The 0.5 lux rating ensures you'll have visibility at night in low light.

Distance Guide Lines: This rear-view camera provides visual distance guide lines (Red, Orange, Yellow, and Green).

Mounting Bracket: The rear-view camera comes supplied with an integrated self-adhesive bracket which can tilt the camera up and down.

3 Connectors: The CC510 rear-view camera includes an attached 31.5' cable terminated by a composite video RCA connector, power lead, and ground lead. The composite video RCA connector plugs into your in-dash monitor's rear-panel RCA camera input. The power/ground leads connect to your vehicle's +12-volt reverse lamp wire and gets grounded to a metal surface of your vehicle.

  • rear-view camera with standard composite (RCA) video cable

  • green, yellow, orange, and red distance guide lines overlay image

  • 1/4" color CMOS image sensor with 342,000 pixel resolution

  • color video output

  • 150-degree horizontal and 100-degree vertical viewing angles

  • light-sensitive down to 0.5 lux

  • automatic iris and white balance

  • weather-proof camera housing

  • tilt and swivel mounting bracket

  • mounting hardware and 31.5-foot power/video cable included

  • camera dimensions: 15/16"W x 15/16"H x 7/8"D

  • warranty: 1 year
