7Driver Audio

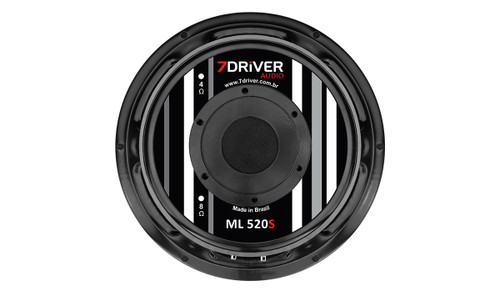

7Driver Audio 10 ML 520S 10" 520w RMS Loudspeaker - 8 Ohms (Sold Individually)

$199.99
$169.99
SKU:
10 ML 520S
UPC:
7898556845205
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

7Driver Audio 10 ML 520S 10" 520w RMS Loudspeaker - 8 Ohms (Sold Individually)

$199.99
$169.99

About: 7Driver Audio 10 MH 420 10" 420w RMS Loudspeaker  - 8 Ohms (Sold Individually)

Enjoy the low and medium highs with intensity and definition, in a product with great fidelity to reproduce your favorite songs, the ML 520S will surprise you in details of your range performance. It can be used preferentially from automotive electrical trios.

Technical Information

RMS Power 520W
Musical Power 1,040W
Nominal Impedance 8 ohms
Coil Wire's Electric Resistance 2.8 / 5.9 ohms/VCC
NO (Efficiency Referential) 1.809%
Sensitivity (@ 1W, 1 m)-Free-air 94.593dB
Diaphragm Mass 0.0668 lbs (0.030344 kg)
Total Mass 0.0760 lbs (0.034490 kg)
BL Product 12,831 TM
Mechanical Q (Qms) 7.593
Electrical Q (Qes) 0.584
Total Q (Qts) 0.542
Compliance (CMS) 129.843u M/N
Equivalent Volume (VAS) 6.7857 gal (25.687 liters)
Frequency Response 60 Hz to 4,500 Hz
Resonance Frequency 75.2 Hz
Cone Effective Area (SD) 0.4015 Sq.ft (0.0373 Sq.m)
Cone Excursion without Distortion (X MAX) -+ 0.2756 inches (7 mm)
Gap Flux Density 9,680 Gauss
Nominal Diameter 10 Inches
Ferrite Measures 6.653 x 0.9448 inches (169 x 24 mm)
Coil Diameter 3 Inches
Coil Height 0.7086 inches (18 mm)
Coil Wire Material CCAW
Coil Wire Section Round
Coil Shape Fiber
Gap Height 0.3031 inches (7.7 mm)
Housing Structure Material Steel
Ferrite Material Barium
Weight 13.0073 lbs (5.9 kg)
Cabinet Occupied Volume 0.5547 gal (2.1 liters)
