7Driver Audio

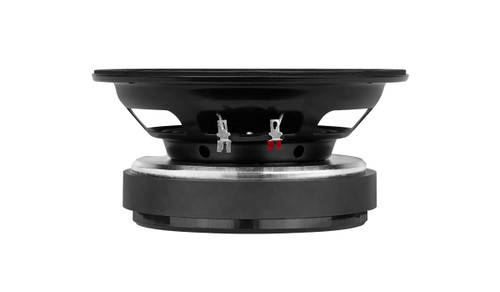

7Driver Audio 6 MB 400S 6" 200w RMS Loudspeaker - 8 Ohms (Sold Individually)

$99.99
$79.99
SKU:
6 MB 400S
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

7Driver Audio 6 MB 400S 6" 200w RMS Loudspeaker - 8 Ohms (Sold Individually)

$99.99
$79.99

About: 7Driver Audio MB 400S 6" 200w RMS Loudspeaker - 8 Ohms (Sold Individually)

The 6-MB 400S is an 6 inches loudspeaker model which was designed to reproduce with medium-low and medium-high fidelity, responding from 80Hz to 5,300Hz. Its ventilated housing provides efficient heat exchange, preserving the coil. With a power of 200 Watts RMS, the 6-MB-400S can be used in several sound systems.

Technical Information

RMS Power 200W
Musical Power 400W
Nominal Impedance 8 ohms
Coil Wire's Electric Resistance
3.1 / 6.2 ohms/VCC
NO (Efficiency Referential) 1.131%
Sensitivity (@ 1W, 1 m)-Free-air 92.554dB
Diaphragm Mass 0.0283 lbs (0.012845 kg)
Total Mass 0.0303 lbs (0.013765 kg)
BL Product 11,138 TM
Mechanical Q (Qms) 6.556
Electrical Q (Qes) 0.434
Total Q (Qts) 0.407
Compliance (CMS) 170.591u M/N
Equivalent Volume (VAS) 1.1985 gal (4.537 liters)
Frequency Response 80 Hz to 5,300 Hz
Resonance Frequency 103.860 Hz
Le @ 10kHz (Coil Inductance at 10kHz) 0.469 mH
Cone Effective Area (SD) 0.146 Sq.ft (0.0136 Sq.m)
Cone Excursion without Distortion (X MAX) -+ 0.15748 inches (4 mm)
Gap Flux Density 11,300 Gauss
Nominal Diameter 6 inches
Ferrite Measures 5.27 x 2.204 x 0.708 inches (134 x 56 x 18 mm)
Coil Diameter 2 inches
Coil Height 0.433 inches (11 mm)
Coil Wire Material Copper
Coil Wire Section Round
Coil Shape Fiber
Gap Height 0.236 inches (6 mm)
Housing Structure Material Steel
Ferrite Material Barium
Weight 5.95 lbs (2.7 kg)
Cabinet Occupied Volume 0.203 gal (0.77 liters)
