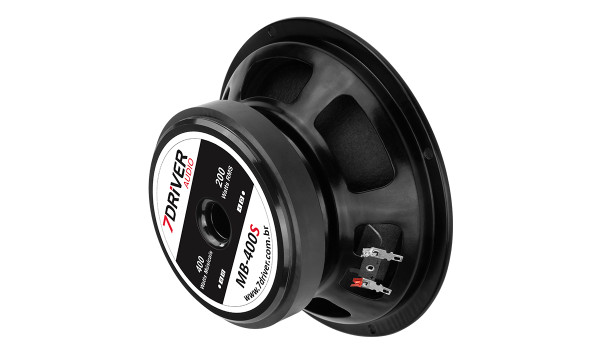

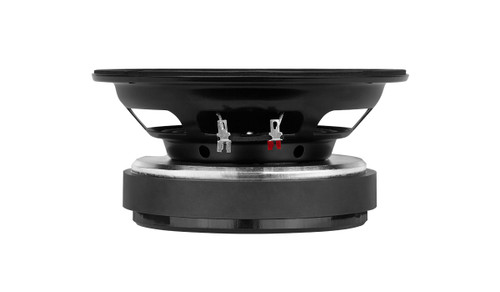

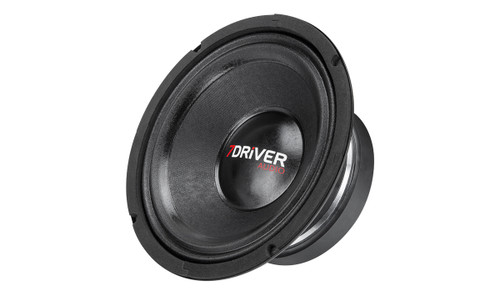

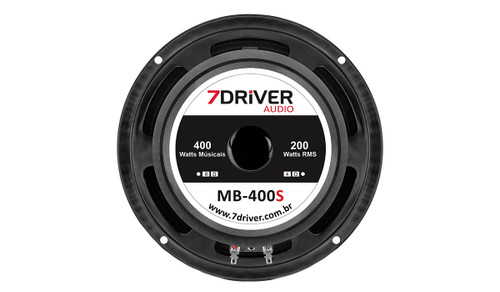

About: 7Driver Audio 8MB400S 8" 200w RMS Loudspeaker - 8 Ohms (Sold Individually)
The 8-MB 400S is an 8 inches loudspeaker model which was designed to reproduce with medium-low and medium-high fidelity, responding from 60Hz to 4.000Hz. Its ventilated housing provides efficient heat exchange, preserving the coil. With a power of 200 Watts RMS, the 8-MB-400S can be used in several sound systems.
Technical Information
| RMS Power | 200W |
|---|---|
| Musical Power |
400W |
| Nominal Impedance | 8 ohms |
| Coil Wire's Electric Resistance |
3.1 / 6.2 ohms/VCC |
| NO (Efficiency Referential) | 1.088% |
| Sensitivity (@ 1W, 1 m)-Free-air | 92.386dB |
| Diaphragm Mass | 0.0438 lbs (0.019902 kg) |
| Total Mass | 0.0477 lbs (0.021667 kg) |
| BL Product | 11,048 TM |
| Mechanical Q (Qms) | 7.031 |
| Electrical Q (Qes) | 0.493 |
| Total Q (Qts) | 0.460 |
| Compliance (CMS) | 208.602u M/N |
| Equivalent Volume (VAS) | 3.491 gal (13.218 liters) |
| Frequency Response | 60 Hz to 4,000 Hz |
| Resonance Frequency | 74.861 Hz |
| Le @ 10kHz (Coil Inductance at 10kHz) | 0.4495 mH |
| Cone Effective Area (SD) | 0.227 Sq.ft (0.0211 Sq.m) |
| Cone Excursion without Distortion (X MAX) | -+ 0.157 inches (4 mm) |
| Gap Flux Density | 11,300 Gauss |
| Nominal Diameter | 8 inches |
| Ferrite Measures | 5.275 x 2.204 x 0.708 inches (134 x 56 x 18mm) |
| Coil Diameter | 2 inches |
| Coil Height | 0.433 inches (11 mm) |
| Coil Wire Material | Copper |
| Coil Wire Section | Round |
| Coil Shape | Fiber |
| Gap Height | 0.236 inches (6 mm) |
| Housing Structure Material | Steel |
| Ferrite Material | Barium |
| Weight | 6.172 lbs (2.8 kg) |
| Cabinet Occupied Volume | 0.264 gal (1.0 liters) |
