Adam Audio

Adam Audio T5V 2-Way Nearfield Studio Monitor with a 5" Woofer

$349.00
$279.00
SKU:
AD-T5V
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

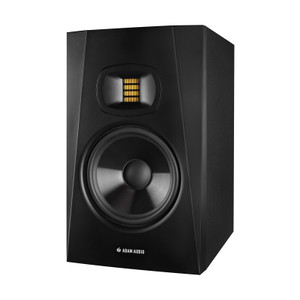

Adam Audio T5V 2-Way Nearfield Studio Monitor with a 5" Woofer

$349.00
$279.00

About: Adam Audio T5V 2-Way Nearfield Studio Monitor with a 5" Woofer

The T5V is a highly affordable two-way nearfield monitor and optimized for small control rooms.

With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair.

Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

If you need to hear more bottom end, the T5V is compatible with the ADAM Audio T10S subwoofer.

State of the Art Technology

ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.

Features:

  • U-ART 1.9” Accelerated Ribbon Tweeter with HPS Waveguide
  • Polypropylene 5” woofer and rear-firing bass-reflex port
  • Total RMS Amp. Power: 70 W
  • Frequency Response: 45 Hz - 25 kHz (-6 dB)
  • Max. SPL Per Pair at 1 m: ≥106 dB

Specifications:

  • Panel: Rear
  • Max. Power Consumption: 132 W
  • Weight: 12.6 lbs (5.7 kg)
  • Height x Width x Depth: 11.7″ x 7″ x 11.7″ (298 mm x 179 mm x 297mm)
  • Delivery Contents: Power cord, Quick Start Guide

Audio Input Connectors:

  • Analog: XLR / RCA
  • Input Impedance: 10 kOhm / 20 kOhm

Amplification:

  • Woofer:
    • Amplifier Type: PWM
    • Amp. Power RMS: 50 W
  • Tweeter:
    • Amplifier Type: PWM
    • Amp. Power RMS: 20 W

Acoustics:

  • Frequency Response: 45 Hz – 25 kHz (-6 dB)
  • THD > 80 Hz: 0.5 %
  • Max. SPL per pair at 1 m: ≥106 dB
  • Crossover Frequency: 3 kHz

Drivers:

  • Woofer:
    • Basket Diameter: 5″
    • Voice Coil Diameter: 1″
    • Cone Material: Polypropylene
  • Tweeter:
    • Type: U-ART
    • Diaphragm Area: 4 inch² (2420 mm²)
    • Equiv. Diaphragm Diameter: 1.9″ (48 mm)
    • Velocity Transform Ratio: 4 to 1
    • Diaphragm Weight: 0.17 g
    • Waveguide: HPS

Control Options

  • Input Sensitivity: -10 to +4 dB
  • Gain: Yes
  • High Shelf EQ > 5 kHz: – 2 dB, 0 dB, +2 dB
  • Low Shelf EQ < 300 Hz: – 2 dB, 0 dB, +2 dB
