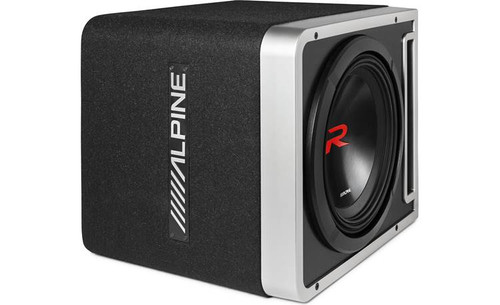

About: Alpine Halo R2-SB12V Single 12" Preloaded Subwoofer Enclosure
Groundbreaking Alpine Halo design with next-generation R-Series Subwoofers for more accurate and authoritative bass.
Unique ProLink™ Design
Alpine’s unique ProLink™ technology was designed with the sound system builder in mind. ProLink™ allows more flexibility in both power and price to start with a single subwoofer enclosure and add an additional subwoofer using a Linking Kit (sold separately) to link two enclosures together to create a dual system when more bass is desired.
Alpine Halo Design
The enclosures share the premium, unmistakable design of the Alpine Halo Family. The enclosures pull design cues from the Alpine Halo Display with unique, curved edges outlined by a silver trim and a front baffle for a matching system aesthetic. Built with sturdy, 3/4” MDF construction and covered in a premium black carpet, these enclosures give the impression of a custom look, without the custom work.
Deeper Bass Output
The enclosures come preloaded with the 2nd-Gen R-Series Subwoofers with larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Increased Accuracy
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool, which also contributes to increased output from the subwoofers. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Features:
- Groundbreaking Alpine Halo Design
- ProLink™ ported enclosure design
- Polypropylene/Ceramic Composite Dust Cap
- Kevlar Reinforced Pulp Cone High-Performance subwoofers
- High-Amplitude Multi-Roll (H.A.M.R.) Surround
- Large Double-Stacked Magnets
- CARB compliant 3/4-inch MDF construction
- Premium black carpet
- Silver Alpine embossed side logo badge
- Brushed aluminum finished metallic front baffle
- Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
Specifications:
- 12" ported subwoofer enclosure
- Loaded with Alpine's R2-W12D4 subwoofer
- Linkable to second R2-SB12V enclosure with linking kit (sold separately)
- Kevlar-reinforced pulp cone
- Santoprene rubber surround
- Power handling: 750 watts RMS (2250 watts peak)
- Frequency response: 24-200 Hz
- Sensitivity: 85 dB
- 2-ohm impedance
- Dimensions (W x H x D): 17.13" x 14.813" x 15.563"
What's in the Box:
- Vented Cabinet with preloaded R2-W12D4 12” R-Series subwoofer
- Warranty Information
- Online product registration information
