About: Alpine iLX-407 7" Digital Multimedia Receiver

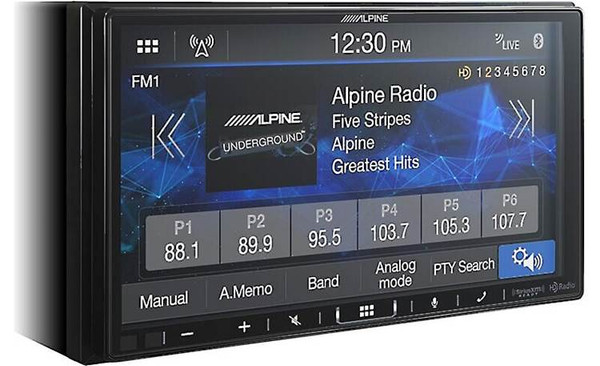

Customizable Screen

Customize the screen exactly the way you want it by using drag-and-drop motions with your finger to add, remove, or move over 29 available widgets. You can prioritize your three home screens so you can quickly find the apps you want like Apple CarPlay®, Android Auto™, Camera, Bluetooth® functions, and more. Add a customizable wallpaper from your photos through a thumb drive.

Powerstack Capable

Measuring at only 2.4” deep, the iLX-407 can fit into vehicles that don’t have a lot of space behind the dashboard. The shallow chassis is optimized to mount either the KTA-450 4-channel or KTA-200M Mono Power Pack Amplifiers (sold separately). Alpine’s award-winning PowerStack™ design adds more power to your sound system while occupying the same depth as a traditional 2-DIN radio.

Apple Carplay

The iLX-407 “Works with Apple CarPlay” and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay is accessed through the capacitive touch screen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later (iPhone must be connected via Apple lightning cable).

Android Auto

The iLX-407 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth® connection; requires an Android™ phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say "OK Google" or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices and reply to text messages – hands-free.

General Features:

• digital media receiver with AM/FM tuner (does not play discs)
• 7" capacitive touchscreen
• fits double-DIN dash openings
• Bluetooth hands-free calling and audio streaming
• HD Radio tuner built-in

Smartphone Features (see Details for info on compatibility with specific smartphones and apps):

• Apple CarPlay and Android Auto compatible
• built-in iPod, iPhone, and iPad control
• playback and control of music files on compatible Android devices

Audio/video Features:

• plays MP3, WMA, AAC, WAV, and FLAC music files (see Details for full capabilities)
• plays AVI and MPEG4 video files
• 5-band parametric equalizer with time correction
• 10 EQ curve presets
• high- and low-pass filters
• Bass Engine SQ
• MediaXpander HD
• dual-zone A/V output

Expandability:

• works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
• compatible with optional Alpine DVE-5300 DVD player
• works with Alpine PowerStack amplifiers in most dash openings
• inputs: rear USB port, rear HDMI input, rear 3.5mm mini A/V input, front- and rear-view camera inputs
• outputs: rear HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other Information:

• wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
• built-in internal amp (16 watts RMS CTA-2006 x 4 channels/50 watts peak)
• compatible with most factory steering wheel audio controls (adapter required)
• compatible with iDatalink Maestro
  • retains factory features in a wide selection of vehicles
  • displays engine performance data on touchscreen

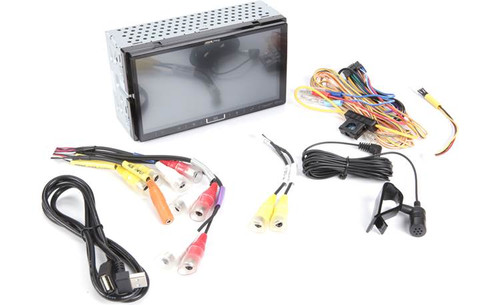

What's in the Box:
