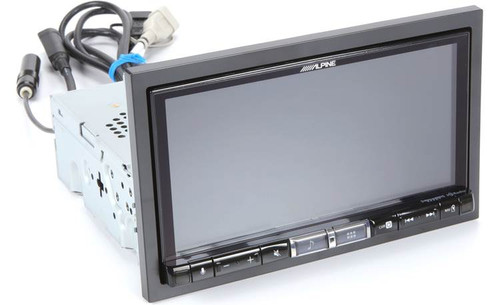

Alpine ILX-507 7" Digital Multimedia Receiver with HD Display and Hi-Res Audio Playback

$1,198.00
$1,399.00
14% Off
SKU: ILX-507
UPC: 793276084354
Condition: New
Availability: Usually Ships in 1-2 Days
Shipping: Calculated at Checkout
Only 1 left
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Alpine ILX-507 7" Digital Multimedia Receiver with HD Display and Hi-Res Audio Playback

Next-generation dash technology in a traditional double din fitment for a modern upgrade on a classic application.

Next-Gen Dash Technology

The iLX-507 features Apple CarPlay®, Android Auto™, and built-in Bluetooth® hands-free which allow access to music, messages, phone calls, and maps on a smartphone via either a wired USB connection or wirelessly. Get even more entertainment options with built-in HD Radio®, Pandora Internet Radio (via iPhone or Android connection), and SiriusXM® for even more choices in entertainment (tuner and subscription sold separately).

Hi-Res Audio

Experience incredible music detail with Hi-Res Audio Playback. High-precision music reproduction brings out the full potential of every song and makes every drive feel like an intimate recording studio session with your favorite artist. Access your favorite songs on popular Hi-Res streaming services like Apple Music, Tidal, Amazon Music HD, and more. The Alpine iLX-507 plays Hi-Res music at it's intended spec of 96kHz/24Bit via a wired USB connection to a smartphone or wirelessly through Bluetooth connection. You can also purchase and download Hi-Res music files onto a USB drive from platforms like HDtracks for Hi-Res playback on the iLX-507.

Apple Carplay® (Wired & Wireless)

The iLX-507 Works with Apple CarPlay® and lets iPhone users make and receive calls, access text messages, play music, and get directions in a way that allows them to stay focused on the road. Apple CarPlay® is accessed through the capacitive touchscreen or the mic button to activate Siri voice control and is compatible with iPhone 5 and later.

Android Auto™ (Wired & Wireless)

The iLX-507 includes Android Auto and works with the Google Assistant (requires both a USB cable and Bluetooth connection; requires an Android phone running 5.0 [Lollipop] or higher and the Android Auto app). To access the Google Assistant on Android Auto, say “OK Google” or select the mic button. Google Assistant in Android Auto allows users to play their favorite music, get driving directions to their destination, interact with smart home devices, and reply to text messages – hands-free.

Onboard Audio Tuning

Enhanced on-board tuning features now include a 13-band parametric EQ per channel, for continuous frequency control. The 6-channel time correction ensures that music is staged properly in the front and center of the vehicle. If more power is needed, additional amplifiers can be added using the three sets of true 4V preamp outputs with front, rear, and subwoofer control.

Hi-Res Music Streaming with TIDAL

Experience music as the artist originally intended with the industry’s first full TIDAL integration. The iLX-507 allows you to access select TIDAL features directly on the head unit and receive a high-res streaming experience with the TIDAL catalog of over 90 million songs. Lossless audio and high-fidelity music options are also available for TIDAL HiFi and HiFi Plus Members, for superior sound quality that elevates the music experience. A TIDAL subscription is required and sold separately. To access TIDAL on the Alpine Head Unit, the head unit must be tethered to a mobile or smartphone hotspot. Data rates may apply.

SiriusXM with 360L

Alpine is the first aftermarket car audio company to offer SiriusXM-Ready® head units enhanced with 360L. SiriusXM with 360L combines satellite and streaming features, to give you the widest variety of ad-free music, and the best in sports, news, talk, and comedy. SiriusXM-Ready® with 360L is available on compatible Alpine head units and requires the SXV300 Tuner and subscription (sold separately)*.

Keep Select Factory Controls

The iLX-507 is compatible with the iDatalink Maestro Module (sold separately) to retain and display vehicle information. Information such as steering wheel controls, tire pressure, engine codes, and HVAC control may be accessible from the iLX-507 (information will vary by vehicle).

Add a Rear Camera and More

The iLX-507 includes two camera inputs to add a front, side, or rearview camera (sold separately). The rearview camera includes a distance guide display that overlays guidelines onto the screen for ease when moving in reverse.

Dash Cam Integration

Take driving safety even further by connecting your iLX-507 with the DVR-C320R Premium 1080P Front and Rear Dash Camera with built-in drive assist (sold separately). View real-time and recorded drives in high definition right on the screen, plus receive drive assist features that help get you to your destination safely.

Quick Sound Control

The new RUX-H02 Alpine Halo Subwoofer Controller (sold separately) can be mounted to the dash for quick-access controls to the subwoofer and main volume through a wireless Bluetooth® connection.

General Features:

  • Digital multimedia receiver with AM/FM tuner (does not play discs)
  • 7" capacitive touchscreen
  • High-resolution (1280x720 pixels) display
  • Fits in double-DIN (4" tall) dash openings
  • HD Radio tuner built-in
  • Bluetooth hands-free calling and audio streaming (external microphone included)

Smartphone features (see Details for info on compatibility with specific smartphones and apps):

  • Apple CarPlay compatible (wired and wireless)
  • Android Auto compatible (wired and wireless)
  • built-in iPod, iPhone, and iPad control
  • playback and control of music files on compatible Android devices
  • Pandora and Spotify control with iPhone and Android
  • full Tidal integration with custom display (requires a wi-fi connection and Tidal smartphone app)

Audio/video Features:

  • Plays MP3, WMA, AAC, APE, and FLAC music files (see Details tab for full capabilities)
  • Plays AVC, FLV, H,264, MP4, MPEG-4, and MOV video files
  • Plays lossless FLAC audio files up to 96kHz/24-bit
  • 24-bit digital-to-analog converter (DAC)
  • 13-band parametric equalizer (Basic or Advanced)
  • 6-channel time correction
  • High- and low-pass filters
  • Bass Engine SQ
  • MediaXpander HD

Expandability:

  • Works with SiriusXM SXV300 tuner—supports Tune Mix, Traffic & Weather Now, and Sports Flash features
  • Compatible with optional Halo wireless level controller
  • Compatible with optional 2-camera switcher
  • Inputs: 2 rear USB ports; rear HDMI input; rear auxiliary input; 2 proprietary camera inputs (one composite video adapter is included for non-Alpine cameras)
  • Outputs: rear HDMI output; 6-channel preamp outputs (4-volt front, rear, subwoofer)

Other information:

  • Wired connection to parking brake required to access settings, video display, and other features on this receiver (the parking brake must be connected and set, released, and set again)
  • Built-in internal amp (16 watts RMS CTA-2006/50 peak x 4 channels)
  • Compatible with most factory steering wheel audio controls (adapter required)
  • CTA-2006 compliant
  • Compatible with iDatalink Maestro
    • Retains factory features in a wide selection of vehicles
    • Displays engine performance data on touchscreen

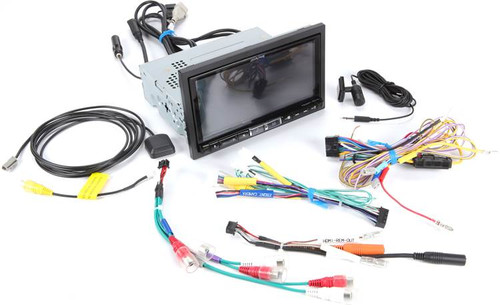

What's in the Box:

  • Digital multimedia receiver
  • Trim-ring
  • Wiring harness (15A fuse)
  • Preout harness
  • iDatalink/Driver Recorder/Front Camera harness
  • Camera input adapter harness
  • Mic/SWC harness
  • Microphone (w/ attached 12.5' cable terminated by a mono-minijack connector)
  • Surface-mount bracket
  • Two-sided tape
  • GPS antenna (attached 8' cable with proprietary connector)
  • Self-adhesive mounting pad
  • 3 Self-adhesive cable clamps
  • 4 Pan-head ISO-screws (M5x8mm)
  • 4 Counter-sunk ISO-screws (M5x8mm)
  • HDMI connector clamp
  • Quick Reference Guide
  • Online Registration Information
  • Online Detailed Manual Card
