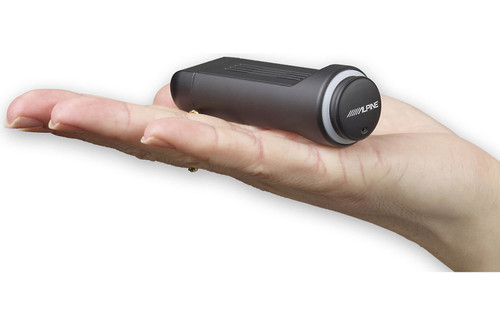

About: Alpine KTX-NS01 Navigation Expansion Module

Access the latest maps, including off-road navigation, without cellphone or Wi-Fi connection.

Navigation Wherever You Go

Get access to the latest maps without relying on a smartphone or Wi-Fi connection with the KTX-NS01 Navigation Module. The KTX-NS01 is a compact module that plugs into the USB port of compatible Alpine radios via an included 10cm cable and utilizes the Alpine radio antenna and a GPS Satellite connection to provide onboard navigation no matter where your next adventure takes you.

Off-Road Mode

Go off the beaten path with Off-Road Mode on the KTX-NS01. Off-Road Mode provides vehicle data (tire pressure, battery voltage, GPS coordinates), tracking of trail distance/time, and compass readings. The off-road navigation database includes Points of Interest (POIs) for vehicular recreational areas, FunTreks trailheads, and U S. campsites. You can also revisit trails through Off-Road Mode trip recording.

Navigation Features

After plugging the KTX-NS01 into the Alpine radio, a navigation app will appear on the home screen, providing instant access to HERE map database with maps of the United States and Canada. Voice prompts for turn-by-turn directions are also available and are projected from the vehicle's sound system.

Driving Enhancements

The KTX-NS01 offers a suite of built-in driving features like signs, signals, warning, traffic patterns, speed limits, and extended lanes. Streets are colored on the navigation map based on the current traffic flow. The module enables a pinch-to-zoom feature on the radio screen that allows you to zoom in on the map during the navigation session.

Specifications:

• Add-on GPS module for select Alpine touchscreen radios
• 4" USB cable included
• Built-in GPS receiver
• LED status indicator
• Built-in Wi-Fi for ad hoc connection with radio
• Enables navigation app on radio touchscreen (along with pinch-to-zoom maps)
• Compatible Alpine radios: iLX-507, iLX-F509, iLX-F511, i509-WRA-JK, and i509-WRA-JL
• Module not compatible with Apple CarPlay or Android Auto (wired or wireless)
• Dimensions (W x H x D): 3.25" x 1" x 1"

Navigation Features:

• Includes HERE maps of the U.S. (including Alaska and Hawaii) and Canada, plus points of interest (one free map update allowed within 30 days of module purchase)
• iGo Primo Nextgen navigation software
• Uses Alpine radio antenna and GPS satellite connection
• Voice prompts with text-to-speech
• Speed limits, street signs, road warnings, and turn lanes
• 2-D and 3-D mapping modes
• Advanced route planning

Off-Road Mode:

• FunTreks trailhead points of interest database for U.S. campsites and vehicle recreation areas
• Vehicle data (tire pressure, battery voltage, GPS coordinates)
• Electronic compass
• Trail time/distance tracking
• Trip recording

What's in the Box:

• Add-on navigation USB drive (connector cover installed)
• 6" USB-A extension cable
• Online Registration Sheet
• "Detailed Manual available on the Alpine Website" note
