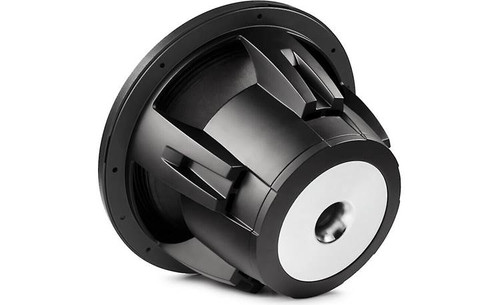

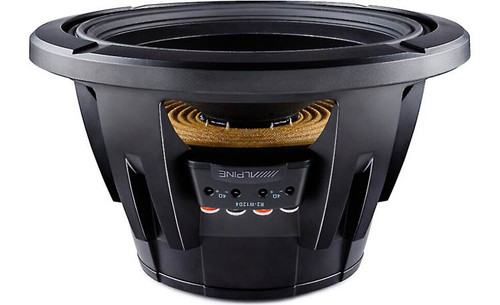

About: Alpine R2-W12D2 R-Series 750W RMS 12" Subwoofer - Dual 2 Ohm
The next generation of sound performance is here with the 2nd-Gen R-Series Subwoofers featuring a larger motor structure for more accurate and authoritative bass.
Next-Gen Sound Performance
Since the Type R platform, Alpine’s R-Series sound system family has been known for its incredible output and reliable performance. Now Alpine introduces the next-generation of sound performance with the 2nd-Gen R-Series Subwoofers with even more bass output.
New Motor Structure
The 2nd-Gen R-Series Subwoofers now feature larger, double-stacked magnets that contribute more motor force for deeper bass and tighter bass control from the subwoofer cone compared to the previous generation. An integrated Faraday ring minimizes distortion for cleaner bass output. A Kevlar-treated cone ensures durability in the subwoofer for reliable performance, even at high volumes.
Additional Reliability
A new polypropylene/ceramic composite dust cap ensures rigidity while also providing incredible internal damping (vibration absorption) to smooth out the bass response and reproduce tight bass. This premium, unique material also has higher heat reliability that ensures non-stop bass performance.
Flexible Application
The 2nd-Gen R-Series Subwoofers contain a Dual Voice Coil (DVC) with easy configuration jumpers that allow for flexible applications. A new “EZ-Change” twist-lock grille mounting system makes it easy to install and remove an optional grille without mounting screws for added protection to the cone. The R2-W12D2 is compatible with the KTE-12G Grille System (sold separately).
Increased Accuracy
The 2nd-Gen R-Series Subwoofers contain Alpine’s High Amplitude Multi-Roll (HAMR) Surround Technology. This rubber surround allows the subwoofer cone to efficiently move air while staying cool. This technology allows for 20mm of total cone excursion and motion that creates incredible accuracy from the subwoofer.
Specifications:
- 12" subwoofer with dual 2-ohm voice coils
- Kevlar reinforced pulp cone with HAMR Santoprene rubber surround
- Frequency response: 24-200 Hz
- Power handling: 300-750 watts RMS (375 watts per coil)
- Peak power: 2250 watts
- Sensitivity: 85 dB
- Top-mount depth: 6.43"
- Sealed box volume: 0.65-1.1 cu. ft.
- Ported box volume: 1.1-1.6 cu. ft.
- Grille not included
What's in the Box:
- One 12" Dual 2-ohm voice coil subwoofer
- Plastic trim ring
- Two 4.5" jumper wires (each wire has a single banana connector on both ends)
