19% Off

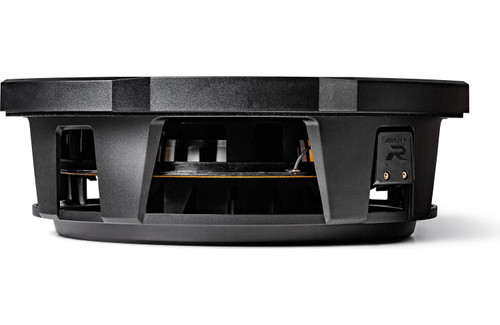

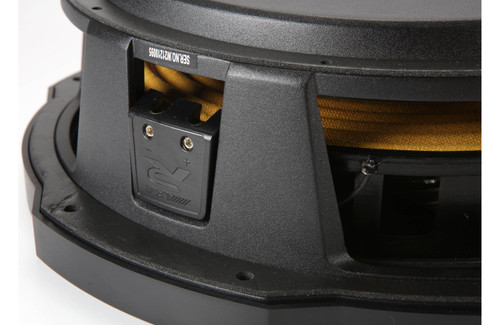

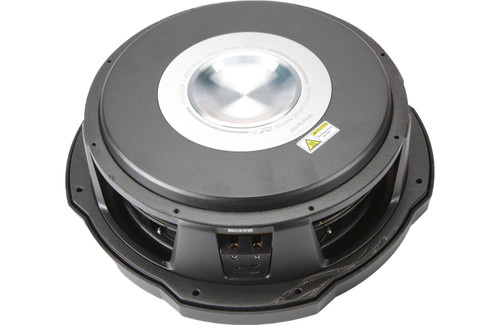

Alpine RS-W12D4 12" 600W RMS R-Series Shallow Subwoofer - Dual 4 Ohm

Alpine

Alpine RS-W12D4 12" 600W RMS R-Series Shallow Subwoofer - Dual 4 Ohm

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$1,049.00

$1,048.00

$1,299.00

19% Off

(You save $1.00 )

SKU: RS-W12D4

UPC: 793276084514

Condition: New

Availability: Special Order - Usually Ships in 5-10 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: Alpine RS-W12D4 12" 600W RMS R-Series Shallow Subwoofer - Dual 4 Ohm

With an ultra-shallow subwoofer design and powerful sound output, the R-Series Shallow Subwoofers give you the best of both worlds in size and sound.

For those looking to add powerful, hard-hitting bass performance to their vehicle but lack the space to add a subwoofer, Alpine’s R-Series Shallow Subwoofer delivers the same fun and loud sound you’ve come to expect, now in a shallow subwoofer that’s designed to fit in most vehicle applications.

Don’t let the size fool you – the R-Series Shallow Subwoofers feature the same cone movement (20MM of excursion) as the full-size R2-Series Subwoofers for extreme output in a shallow woofer design. At the heart of the R-Series Shallow Subwoofers is an oversized 4-inch voice coil that is controlled by a powerful neodymium magnet for 600W RMS of power handling.

Precise Bass Control

Alpine's Gen2 DD-Linear Magnetic Circuit technology, a compact and efficient dual-gap voice coil structure, allows for better control over the motor, resulting in lower distortion and precise bass control.

Powerful Bass Projection

A lightweight yet rigid aluminum dust cap allows the R-Series Shallow Subwoofer to transition sound quickly with minimal distortion and project the bass off the surface of the speaker for hard-hitting yet smooth bass performance. The included adjustable mounting brackets allow for down-fire mount configuration.

Premium Construction

The R-Series Shallow Subwoofers are constructed with a die-cast aluminum frame for a rigid and sturdy construction. For extra protection for the shallow subwoofers, an optional Shallow Subwoofer Grille Kit available in 12" (KTE-RS12G) option (sold separately) provides a steel mesh grille that protects your investment.

Features:

12" shallow-mount subwoofer with dual 4-ohm voice coils
Polypropylene cone with aluminum dust cap and butyl rubber surround
Cast aluminum frame
Frequency response: 25-100 Hz
Power handling: 600 watts RMS (300 watts per coil)
Peak power: 1800 watts
Sensitivity: 81 dB
Top-mount depth: 3.301"
Sealed box volume: 0.65-1.55 cu. ft.
Grille not included

What's in the Box:

One 12" Dual 4-ohm voice coil shallow mount subwoofer
Plastic trim ring
Two 18" jumper wires (12-gauge)
2.5mm Hex key
Application guide (English/ French)
On-line product registration information
Warranty information (English/ French)
Important Notice (English/ French)
