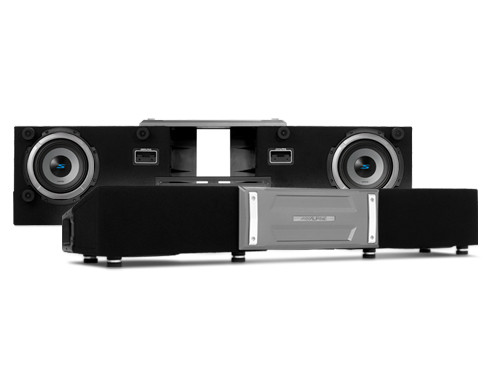

About: Alpine S-Series S2-DB8V-TRK Dual 8” Alpine Halo Preloaded Truck Subwoofer Enclosure with ProLink™

Add deep, accurate bass to your truck with the S2-DB8V-TRK, featuring dual Alpine 8″ S2 subwoofers in a compact ported enclosure that fits under most rear bench seats.

Designed for Trucks

Your truck works hard, and your bass should too. The S2-DB8V-TRK pairs Alpine’s redesigned S2-W8D2 8″ S-Series subwoofers with a space-saving ProLink™ enclosure that fits neatly under the rear bench seat of most full-size trucks. It delivers deep, accurate bass while preserving the comfort and utility of your cabin.

Big Bass Performance

The S2-DB8V-TRK delivers powerful, accurate bass thanks to its two preloaded S2-W8D2 8″ S-Series subwoofers and precision-tuned, ported enclosure. The carbon fiber/polypropylene cones and Alpine’s exclusive HAMR surround allow for long, controlled excursion, producing deep, impactful lows without distortion. Down-firing design and side-firing ports maximize cabin loading, so you hear and feel every note.

Flexible Fitment

A ProLink™M bracket connects the dual subwoofer enclosures and adjusts from 51" to 40", giving the S2-DB8V-TRK the flexibility to fit a wide range of full-size trucks and custom applications. Between the enclosures is an integrated amplifier mount tray that accommodates a variety of Alpine amplifiers, including the S2-A60M Mono Power Amplifier and the S2-A55V 5-Channel Amplifier (both sold separately). Adjustable rubber feet provide stability and help the enclosure sit level on uneven truck floors.

Alpine Halo Design

The S2-DB8V-TRK features a premium design inspired by the Alpine Halo Display. The enclosure's curved edges are accented with silver trim, while the front link bracket sports an Alpine logo badge for a clean, finished look. Built from rugged 5/8" MDF and wrapped in premium black carpet. it not only delivers big bass but also enhances the style of your truck's interior.

Tuned for S-Series

The S2-DB8V-TRK is engineered to perform with Alpine's S-Series sound system line. Its dual S2-W8D2 subwoofers feature dual voice coils wired in parallel for a 20 load, making it an ideal match for Alpine amplifiers like the S2-A60M Mono Power Amplifier or the S2-A55V 5-Channel Amplifier (both sold separately) for optimal power and performance.

Features:

• Groundbreaking Alpine Halo Design
• ProLink™ Ported Enclosure

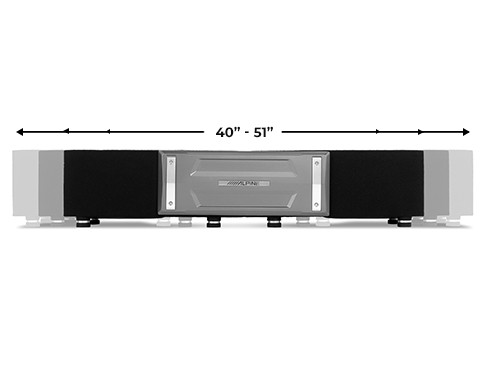

• Expandable Width from 40" to 51"
• Compact, Under-the-Seat Installation in Most Full-Size Trucks
• Integrated Amplifier Tray (not applicable with all vehicles)
• Rubber, Modular Stackable Foot Design Accommodates Uneven Truck Floor Areas
• Ported Enclosures with High-Performance S-Series Subwoofers
• Front Link Alpine Branded Bracket

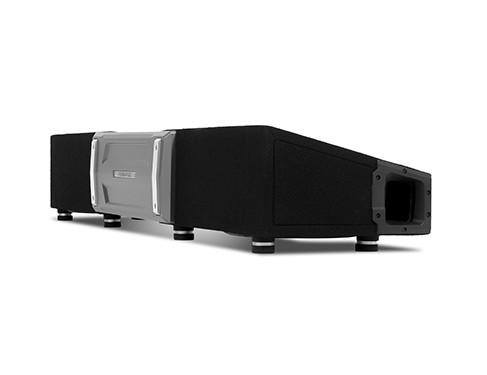

• Side-Firing Cabin Loading Ports
• Premium Alpine Wire Terminals
• CARB Compliant 5/8" MDF Construction
• Premium Black Carpet

Technical Specifications:

• 600W RMS
• Frequency Response: 34Hz-200Hz
• Sensitivity: 84dB
• Dual voice coils wired in parallel for a 2Ω load (Two 4Ω enclosures)
• Compatible with S2-A60M Amplifier for Optimal Power Output
• Vented Enclosure Tuning Frequency: 36Hz
• Custom spring-loaded speaker terminals fit up to 12AWG speaker wire
• Dimensions: 40"-51" (Adjustable Width) x 8-3/4” (H) x 13-3/4” (D)

Confirmed Fitment:

• 2018-Up Chevy Silverado Crew Cab
• 2015-Up Ford F-150 Crew Cab
• 2018-Up GMC Sierra Crew Cab
• 2018-Up RAM 1500 Crew Cab
• 2020-Up Jeep® Gladiator JT (Fits under seat)
• Jeep® Wrangler JK/JL (Fits in trunk space, not under seat)

What's in the Box:

• Subwoofer Enclosures Preloaded with (2) S2-W8D2 8” S-Series Subwoofers
• Front and Rear ProLink™ Brackets
• Alpine Front Logo Cover
• Two Amplifier Tray Brackets
• Owner’s Manual
