Descriptions

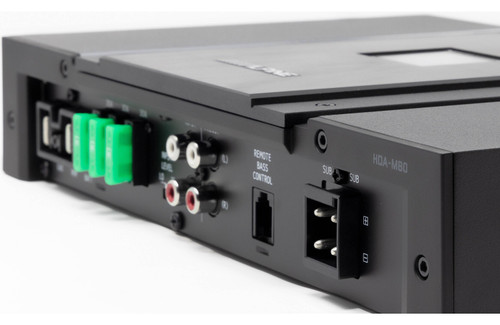

About: Alpine Status HDA-M80 800W RMS Monoblock Amplifier

With the highest quality music streaming available on the market, Alpine Status delivers a superior level of audio performance that will take your music to a whole new level.

Impressive Output

Powering a Hi-Res sound system without contributing noise during playback requires efficiency and precision and the HDA-M80 was intentionally designed to provide impressive power output to the system while ensuring the purest audio performance. The amplifier’s wide dynamic range capability provides impressive output in a compact chassis that fits most vehicle applications.

Precise Sound Reproduction

The HDA-M80 features a high-efficiency digital circuit design that ensures ultra-low distortion levels for precise sound reproduction and superb sound quality. Intentional designs, like a copper-plated chassis and black circuit board, bring the signal-to-noise ratio up to 83dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.

Incredible Reliability

Featuring technology unique to Alpine, the amplifier features Alpine’s dual negative feedback control circuit to improve linearity for the most accurate sound amplification. This technology also stabilizes the amplifier output while driving the subwoofers for ultimate reliability.

Easy Installation

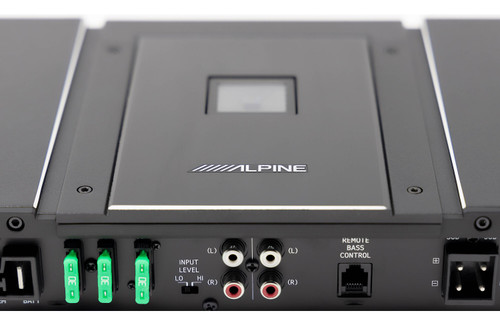

The HDA-M80 features Alpine’s quick-connect power and speaker connectors for quick and safe installation. The one-sided terminal layout and top-panel sound controls give the user quick access to controls on the amplifier.

Optimized for a Full System

The Alpine Status System is sold separately and can be used to build a custom sound system. Three sets of true 4V preamp outputs are included to add additional amplifiers if more power is needed. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.

Features:

Specifications:

• Mono subwoofer amplifier
  • 500 watts RMS x 1 at 4 ohms
  • 800 watts RMS x 1 at 2 ohms
• Class-D amplifier technology
  • frequency response: (-3 dB) 8 to 400 Hz
• Variable low-pass filter (50-400 Hz, 24 dB/octave)
• Variable subsonic filter (8-40 Hz, 24 dB/octave)
• Variable bass boost (0-12 dB, 50 Hz)
• Preamp and speaker-level (up to 10V) inputs
• Speaker-level inputs require speaker wire to RCA adapters
• Speaker-level inputs feature signal-sensing amplifier turn-on
• Optional RUX-KNOB.2 wired remote level control available
• Quick-connect speaker and power connectors
• Wiring and hardware not included with amplifier
• 4-gauge power and ground wire recommended
• Fuse rating: 30A x 3
• Dimensions (W x H x D): 11-7/16" x 2-1/8" x 7-1/2"
