Alpine Status HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier
click to zoom in

have questions?

+1 (416) 745-1021

Ask an Expert

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Installation Assistance

    We're happy to help

  • Canada Wide Delivery

    Free shipping on orders over $200*

Alpine

Alpine Status HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier

$3,299.00
SKU:
HDP-D90
UPC:
793276084927
Condition:
New
Availability:
Special Order - Usually Ships in 5-10 Days
Shipping:
Calculated at Checkout

Alpine Status HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier

$3,299.00

video gallery

Description

About: Alpine Status HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier

Using expertise gleaned from over five decades of crafting premium car audio products and trickle-down engineering and design from the Ultra Hi-Res AlpineF#1Status system technologies, the Alpine Status system features exceptional tooling and rich build quality for the best possible sound reproduction. Each component was hand-picked from the highest-quality materials for the highest in-class audio performance, that when used as a complete system, can achieve 192kHz/24bit playback.

System Powerhouse

Building a sound system while overcoming acoustical challenges in the interior environment of the vehicle is no easy feat, however, the HDP-D90 14-Channel Hi-Res Digital Sound Processor Amplifier provides flexible system building and Hi-Res processing power up to 192kHz/24 Bit for an infallible listening experience.

Ultra-Processing Power

Custom developed for Hi-Res Playback, the HDP-D90 has a 192kHz/64Bit internal sampling rate and an ultra-wide audio bandwidth of 10Hz-110kHz for recording studio-level sound. Intentional designs, like a copper-plated chassis, bring the signal-to-noise ratio up to >110dB and minimize noise and distortion during playback for complete music fidelity that’s true to the original source.

System Flexibility

The HDP-D90 includes multiple source inputs for flexible system building for the option to retain a factory head unit, add an aftermarket head unit, or the Alpine Status HDS-990 Digital Media Controller. For older vehicles with no source player, the HDP-D90 can also function as a standalone music source and can receive music sent directly from a smartphone with Bluetooth® wireless streaming.

Build Your Ideal System

When paired with the Hi-Res HDS-990 Digital Media Player, you unlock even more control options for your processor while getting the highest-quality playback possible in your vehicle.

Powerful System Building

With 12-channels of amplifier outputs, the HDP-D90 can be used as a standalone source to power a 2-Way Speaker System, or for a more dynamic listening experience, includes 10-channels of RCA output for adding additional amplifiers to power a 3-way speaker system.

Optimized for Full System

The Alpine Status System is sold separately and can be used to build a custom sound system. For best results, install the complete Alpine Status system together as a full system to achieve the highest in-class audio performance only second to the Ultra High-Resolution AlpineF#1System.

Features:

  • 12-channel car amplifier with digital processing
    • 50 watts RMS x 8 + 80 watts RMS x 4 at 4 ohms
    • 50 watts RMS x 8 + 160 watts RMS x 2 bridged at 4 ohms
  • Class D amp technology
    • 100 dB signal-to-noise ratio, 0.01% distortion
    • frequency response: 20-40,000 Hz
  • digital signal processing (192 KHz, 32-bit sampling rate)
    • adjustments and settings made via Alpine's HDP DSP tuning app on your laptop or PC and mobile tuning app on your compatible Bluetooth device
    • 31-band parametric and graphic EQ
    • high- and low-pass filters with selectable filter type, crossover point, and slope
    • phase and delay adjustment controls
    • 6 sound effects presets
More info:
  • optional wired remote controller (source, volume, bass, presets)

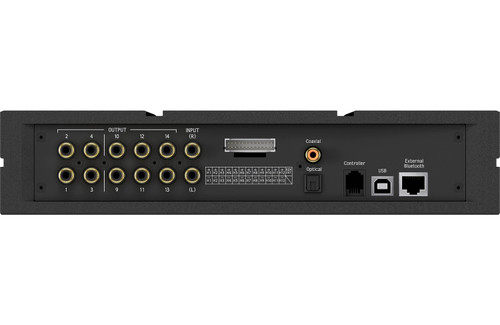

  • 10-channel processed RCA preamp outputs
  • matrix mixing assignable inputs:
    • 12-channel high-level harness (handles up to 26 Vrms)
    • 2-channel RCA
    • coaxial and optical digital
    • Bluetooth streaming (receiver/dongle included)
  • wiring and hardware not included with amplifier
    • 4-gauge power and ground wires recommended
  • fuse rating: 30A x 2
  • dimensions: 11"W x 2-5/16"H x 10-1/2"D

What's in the box:

  • 14-Channel audio processor/amplifier
  • 6" 26-Pin Input harness

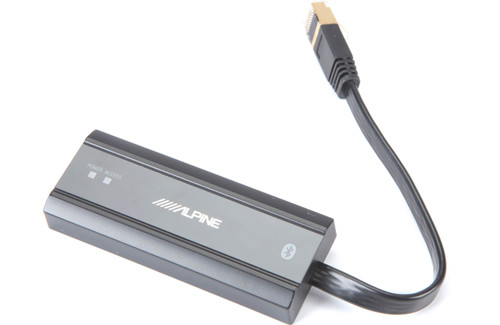

  • Bluetooth module with attached 6" cable (RJ-45)
  • 5' USB cable (type-A to type-B)

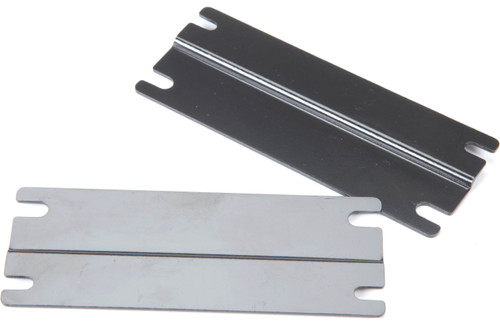

  • 2 Mounting brackets
  • Four 3/4" screws
  • Four 6mm machine screws
  • 4 Spare speaker output set-screws
  • 1/8" Brass plug
  • Quick Reference Guide
  • Guide addendum
  • Warranty information
  • Registration information
