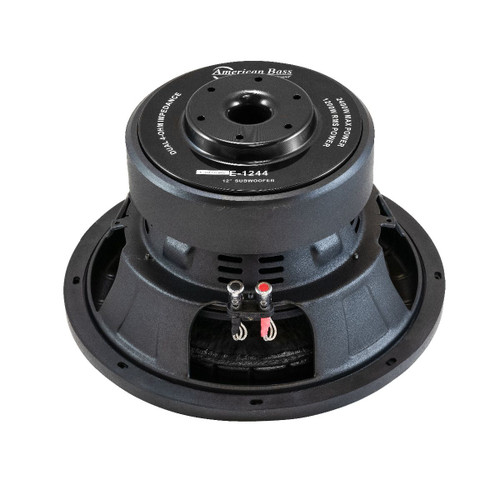

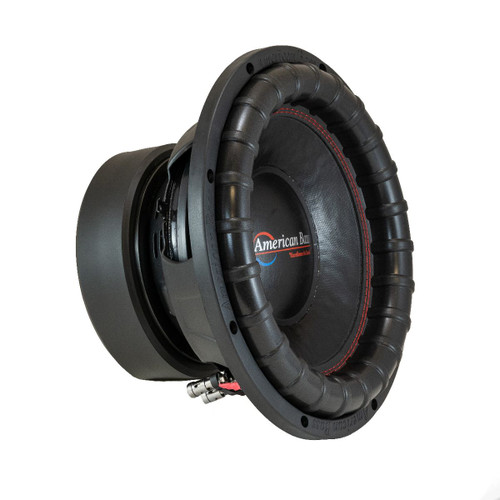

About: American Bass ELITE-1244 12" 1200W RMS Subwoofer  - Dual 4 Ohm

Looking to get the power of an XFL subwoofer without breaking the bank? You’re in luck! American Bass Elite Series subs pack a mighty punch and are close in performance to the XFL - except these bad boys don't come with a hefty price tag. Packing a whopping 150oz stacked magnet for maximum efficiency, plus a fiber-added non-pressed cone and hi-roll high-density foam surround with double stitching, you can ensure your sound is pumping at all times. American Bass doesn't mess around - each sub woofer has a 3” hi-temp 4-layer voice coil on an aluminum bobbin for up to 2400 Watts Max of power handling. Don't suffer through dull, flat music any longer - get an American Bass Elite Series subwoofer and feel like royalty with audio perfection.

Features:

• Heavy durable stamped basket with black power finish
• Fiber added Non-press paper cone
• Hi-roll high density foam surround with silver stitching
• 3" hi-temp 4-layer voice coil on aluminum bobbin
• Double black poly-cotton spiders with mirrow-image layout spacedbyspider ring
• Double thick tinsel stitched on spider
• Double stacked 75oz high grade magnets (150oz total)
• 1-pc tech deep bumped T-yoke for maximum excursion; Chrome finish push terminals
• Customs tooled rubber gasket
• Rubber magnet boot to protect motor

Specifications:

• Power Handling:
• RMS Power: 1200 Watts
• MAX Power: 2400 Watts
• Impedance: Dual 4 Ohm (D4)
• Sensitivity: 86.45 dB
• Mounting Depth: 6.77"
• Cutout Size: 10.94"
• Ported Box: 2.5ft³
• Magnet Size: 150 Oz.
• Voice Coil Size: 3
• Basket Type: Stamped

 Thiele-Small Parameters:

• Equivalent Volume (Vas): 34.04 L
• Xmax: 14 mm
• Free Air Resonance (Fs): 33.052 Hz
• Mechanical Factor (Qms): 4.92
• Electrical Factor (Qes): 0.577
• Total Factor (Qts): 0.517
• Mechanical Mass (Mms): 252.289 g
• Mechanical Compliance (Cms): 91.907
• Cone Area (Sd): 0.051

Mounting and Shipping Information:

• Overall Diameter: 12.51” (318 mm)
• Cutout Size: 10.94" (278 mm)
• Mounting Depth: 6.77” (172 mm)
