Descriptions

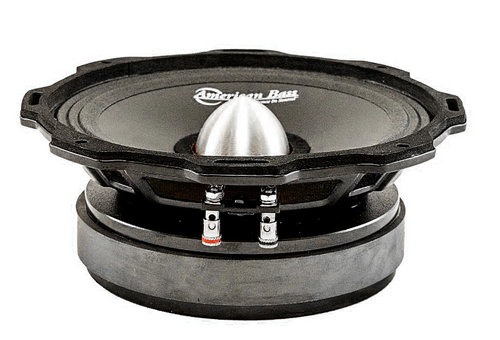

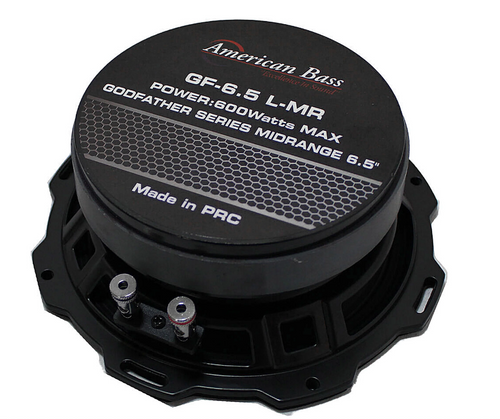

About: American Bass GF-6.5 L-MR Godfather 6.5" 300W RMS Midrange Speaker

The Godfather Midrange speaker sets the standard for American Bass Midranges and will make you 'an offer you can't refuse.' These Godfather speakers deliver incredible clarity and true midrange sound that any other speaker won't find on the market. Nothing else delivers the pure power and strength of the Godfather - and not only are they loud, but they are also crisp, clear, and give a bigger soundstage than anything you've heard. The best part is it comes in sizes 6.5”, 8”, or 10", perfect for any car audio enthusiast looking to switch out their old setups. No matter your plans with these speakers: simple stock replacements or professional competition builds, you know you're getting quality with The Godfathers. Step up your game with the ultimate mobster of midrange speakers!

Specifications:

• Speaker Diameter: 6.5"
• Power Handling:
• Peak: 600 Watts
• RMS: 300 Watts
• Impedance: 4 Ohm
• Sensitivity: 96 dB
• Mounting Depth: 3.03"
• Cutout Size: 5.78"
• Frequency Response: 130-8000 kHz
• Magnet Size: 30 Oz
• Voice Coil: 1.5"
• Basket Type: Stamped Steel
• Grill Included
• Sold Individually

Thiele-Small Parameters:

• Equivalent Volume (Vas): 4.50 L
• Resonance Frequency (Fs): 126 Hz
• Mechanical Factor (Qms): 3.11
• Electrical Factor (Qes): 0.55
• Total Factor (Qts): 0.47
• Cone Area (Sd): 132.73 cm²
• Mechanical Mass (Mms): 8.79 g
• BL Factor (BL): 6.38 Tm
• Dc Resistance (Re): 3.2 Ohms
• Mechanical Mass Without Air (Mmd): 10 g

• Mechanical Compliance (Cms): 179.86 mm/N


Mounting Information:

• Overall Diameter: 6.6" (168 mm)
• Front Mount Baffle Cutout: 5.6" (143.3 mm)
• Mounting Depth: 2.2” (58 mm)
• Overall Depth: 2.5" (62.6 mm)
