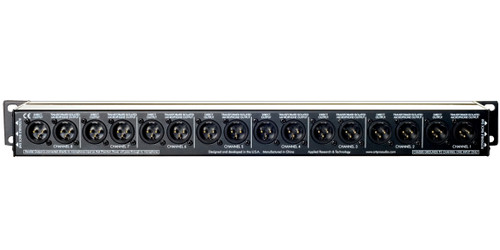

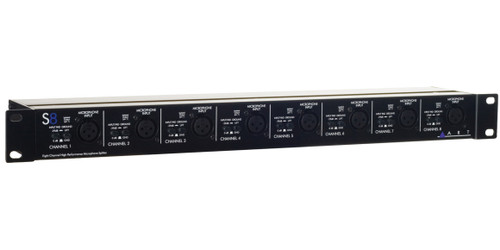

Art Pro Audio ARTS8 8-Channel 2-Way Mic Splitter

$299.00
$319.00
6% Off
SKU: ARTS8
Condition: New
Availability: Special Order - Usually Ships in 3-5 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Art Pro Audio ARTS8 8-Channel 2-Way Mic Splitter

The S8 lets your signals be in two places at once.

It's an 8-channel splitter in a 1U rackmount enclosure, with one direct output and one transformer-isolated output per channel. The passive design doesn't require power, but the direct outputs will pass phantom power for use with active microphones. Each channel also features a switchable ground lift on every channel to reduce noise due to ground loops, and an input pad to accommodate line level sources.

When two outputs are better than one, use the S8 to connect to both the front-of-house and monitor mixers, for creative parallel processing, or to record safety tracks at lower levels in case of clipping.

Need more outputs per channel? Check out the S8-3Way.

Features:

  • 8-Channel 2-Way Splitter
  • Balanced XLR Connections
  • 1x Direct and 1x Transformer-Isolated Output per Channel
  • Direct Outputs Pass Phantom Power
  • Switchable Ground Lift and Input Pad per Channel
  • Passive Design - No Power Required
  • 1U Rackmount
  • Reversible Rack Ears

Specifications:

  • Input Impedance:
    • > 1.1 kΩ @ 1 kHz
    • Typical Driving Source Impedance is 150Ω
  • Output Impedance:
    • < 255Ω @ 1 kHz
    • 1 kΩ Typical Output Load Impedance
  • Frequency Response: 20 Hz - 20 kHz (+/- 0.25 dB @ -15 dBu)
  • THD:
    • < 0.26% (20 Hz - 20 kHz, -15 dBu Input)
    • < 0.1% (45 Hz - 20 kHz, -15 dBu Input)
    • 0.002% Typical @ 1 kHz (-15 dBu Input)
  • CMRR:
    • > 105 dB @ 60 Hz
    • > 80 dB @ 3 kHz
  • Phase Shift: <10° @ 20 kHz (Reference 1 kHz)
  • Insertion Loss: ~2 dB @ 1 kHz
  • Dimensions (DWH):
    • 3.75" x 19" x 1.75"
    • 95 mm x 483 mm x 44 mm
  • Weight: 3.75 lbs / 1.7 kg
