Descriptions

About: Art Pro Audio DualZDirect 2-Channel Passive Direct Box Connects Unbalanced Instrument, Line, or Speaker Signals to Balanced Inputs

The DualZDirect is a 2-channel passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs.

Each input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage.

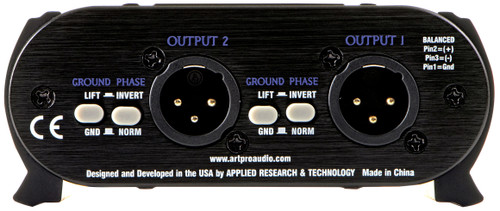

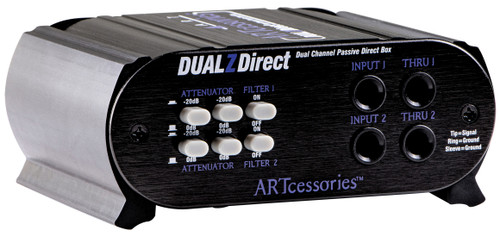

Front panel switches engage up to 40 dB of attenuation to accommodate high-level signals, and a low-pass Bessel filter to eliminate high-frequency interference. Rear switches activate a ground lift to reduce hum, and invert the signal polarity to resolve phase issues, such as those which can occur when combining DI and mic sources.

As a fully passive design, the DualZDirect doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.

Simple and durable, the DualZDirect is a compact DI in a rugged aluminum enclosure with two indpendent channels and a versatile feature set.

Features:

• 2 Independent Channels
• 1/4" TRS Inputs and Thru Connectors
• Balanced XLR Outputs
• Switchable Attenuation (-20 dB, -40 dB) per Channel
• Switchable Low-Pass Filter, Ground Lift, and Phase Invert per Channel
• Passive Design - No Power Required

Specifications:

• Active or Passive: Passive
• Inputs: 2x 1/4" TRS
• Outputs:
• 2x XLR
• 2x 1/4" TRS Thru
• Input Impedance: 50 kΩ
• Output Impedance: 600Ω
• Controls Attenuator:
• (0 dB, -20 dB, -40 dB)
• Filter
• Ground Lift
• Phase Invert (All per Channel)
• Filter: 30 kHz Low-Pass
• Frequency Response: 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu
• Total Harmonic Distortion:
• .01% @ 1 kHz, +18 dBu (Typical)
• <.05% @ 100 Hz, +18 dBu
• Channel Separation: >80 dB (Typical)
• Dimensions (HWD): 1.85" x 4.6" x 3.9", 4.7 cm x 11.7 cm x 9.9 cm
• Weight: 0.88 lbs / 400 g
