About: Art Pro Audio EQ341 EQ341 Dual 15-Band Graphic Equalizers for Live Sound, Studio, and Installation Audio Applications

ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation.

The EQ341 is a dual-channel 15-band EQ. Each channel has an independently switchable range of 6 or 12 dB, master level control, and bypass switch to quickly compare the dry and processed signals.

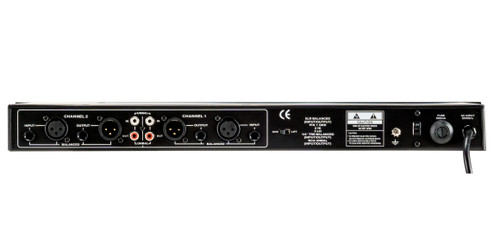

The rear panel has balanced XLR, balanced 1/4” TRS, and unbalanced RCA connectors, so the EQ341 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.

Looking for even more control? Check out the dual 31-band EQ355.

Features:

• Dual 15-Band Graphic EQ
• 20mm Sliders with Centre Detent
• Switchable 6 dB or 12 dB Range
• Master Level Controls
• Balanced XLR and 1/4" TRS Inputs and Outputs
• Unbalanced RCA Input and Output
• 1U Rackmount

Specifications:

• Channels: 2
• Bands per Channel: 15 (2/3 Octave, ISO Spacing)
• Accuracy: +/- 3% of Centre Frequency
• Sliders: 20 mm with Centre Detent
• Range: +/- 6 dB or +/- 12 dB
• Inputs:
• 2x Balanced XLR and 1/4"
• 2x Unbalanced RCA
• Input Impedance:
• 20 kΩ (Balanced)
• 15 kΩ (Unbalanced)
• Maximum Input Level: +22 dBm (Level Control at Centre)
• Outputs:
• 2x Balanced XLR and 1/4"
• 2x Unbalanced RCA
• Output Impedance Level <150Ω (Typical)
• Frequency Response 20: Hz to 20 kHz (+/- 0.5 dB)
• Signal to Noise Ratio: -94 dB
• Total Harmonic Distortion: 0.01%
• Channel Separation: >50 dB
• Overload LED Threshold: 6 dB below Clipping (All Filters Flat)
• Dimensions (HWD):
• 1.75” x 19” x 5.5”
• 4.4cm x 48.3 x 14 cm
• Weight: 4.85 lbs. / 2.2 kg
