About: Art Pro Audio EQ351 EQ351 31-Band Graphic Equalizers for Live Sound, Studio, and Installation Audio Applications

ART 300-Series graphic equalizers are designed for live sound, studio, and installation audio applications to provide intuitive sound shaping, versatile features, and silent operation.

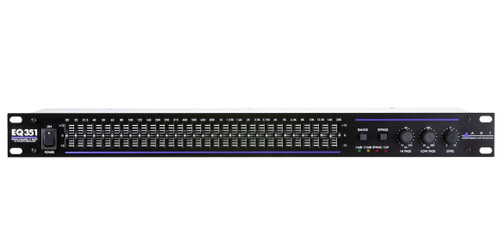

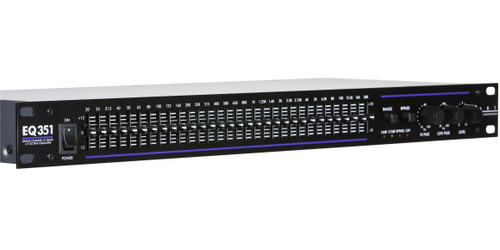

The EQ351 is a single-channel 31-band EQ with a switchable range of 6 or 12 dB, for subtle shaping or dramatic sculpting of your sound. The high-pass and low-pass filters can quickly dial in the optimal bass and treble response, and the bypass control lets you compare the dry and processed signals for easy reference.

The rear panel has balanced XLR, balanced 1/4 TRS, and unbalanced RCA connectors, so the EQ351 is easy to integrate into any system. It also features a ground lift switch to help eliminate hum.

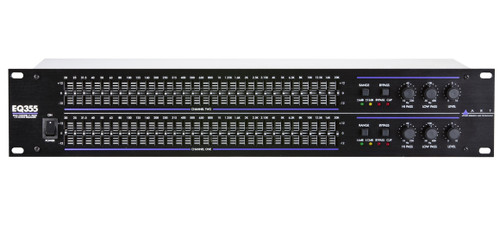

Looking for a stereo EQ? Check out the dual-channel EQ341 and EQ355.

Features:

• 31-Band Graphic EQ
• 20mm Sliders with Centre Detent
• Switchable 6 dB or 12 dB Range
• Variable High-Pass and Low-Pass Filters
• Master Level Controls
• Balanced XLR and 1/4" TRS Inputs and Outputs
• Unbalanced RCA Input and Output
• 1U Rackmount

Specifications:

• Channels: 1
• Bands per Channel: 31 (1/3 Octave, ISO Spacing)
• Accuracy: +/- 3% of Centre Frequency
• Sliders: 20 mm with Centre Detent
• Range: +/- 6 dB or +/- 12 dB
• Inputs:
• Balanced XLR and 1/4"
• Unbalanced RCA
• Input Impedance:
• 20 kΩ (Balanced)
• 15 kΩ (Unbalanced)
• Maximum Input Level: +22 dBm (Level Control at Centre)
• Outputs:
• Balanced XLR and 1/4"
• Unbalanced RCA
• Output Impedance Level: <150Ω (Typical)
• Frequency Response: 20 Hz to 20 kHz (+/- 0.5 dB)
• Signal to Noise Ratio: -94 dB
• Total Harmonic Distortion: 0.01%
• High-Pass Filter: 10 Hz - 250 Hz (12 dB per Octave)
• Low-Pass Filter: 3 kHz - 40 kHz (12 dB per Octave)
• Overload LED Threshold: 6 dB below Clipping (All Filters Flat)
• Dimensions (HWD):
• 1.75” x 19” x 5.5”
• 4.4cm x 48.3 x 14 cm
• Weight: 4.5 lbs / 2.5 kg
