About: Art Pro Audio MX622BT 6-Channel Stereo Mixer with EQ & Bluetooth

The MX622BT is a rackmount mixer with Bluetooth® connectivity, an effects loop, and onboard EQ.

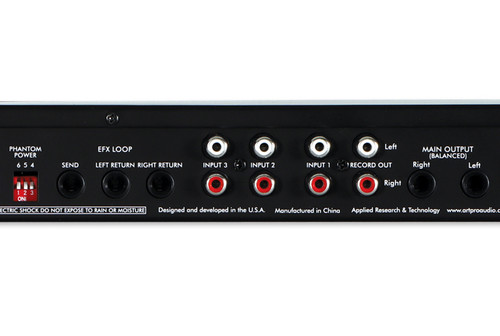

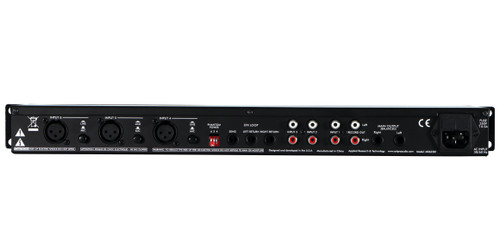

Channels 1 through 3 have stereo RCA inputs, and channel 3 also has an 1/8” stereo input on the front panel. Channels 4 through 6 have mono XLR inputs that are switchable between mic and line level, as well as switchable phantom power. The rear panel has balanced 1/4” and stereo RCA outputs.

Each input has a dedicated level control, and you can enhance your mix with the master 2-band EQ and switchable effects loop to integrate external signal processing. You can also use the effect return jacks as an additional stereo input controlled by the Effects Level knob.

It’s particularly well-suited for retail, restaurant, corporate, or academic settings that need to combine wired and wireless A/V sources with up to three microphones, but its versatile features and range of connections make the MX622BT easy to integrate in almost any audio application.

Features:

• Bluetooth 5.0 receiver
• Three balanced XLR inputs with separate Mic/Line switch, Level control and Clip Indicator
• Three pairs of RCA stereo inputs with separate Level controls
• Selectable 15 Volt Phantom power for each Mic channel
• Balanced 1/4-inch TRS Main outputs with Master Level control
• Versatile Bass and Treble equalization on Main outputs
• Front TRS stereo 1/8-inch Input jack
• Stereo Record Out RCA jacks
• Effects Loop with Effects Level control and In/Out switch
• 1/4-inch Effects Send with stereo Returns
• Internal power supply
• Solid metal case

Specifications:

• Inputs:
• 3x XLR balanced
• 2x 1/4" unbalanced
• 6x RCA
• 1x 1/8" balanced
• Outputs:
• 2x 1/4" TRS balanced
• 1x 1/4" unbalanced
• 2x RCA
• Input Impedance: 600/22K Ω Mic/Line XLR inputs, 10K Ω RCA inputs, 22K , 1/4" EFX Returns
• Output Impedance: 50 Ω 1/4" Main outputs, 1 K Ω RCA Record outputs, 100Ω EFX output
• Maximum Input Level: -10 dBu/+20 dBu Mic/Line XLR inputs, +20 dBu RCA line inputs, +20 dBu EFX inputs
• Maximum Output Level: +24 dBu balanced Main outputs, +20 dBu RCA Record outputs, +20 dBu EFX output
• Maximum Gain: 56 dB / 26 dB Mic/Line, 26 dB RCA inputs
• Total Harmonic Distortion: <1% typical
• Signal to Noise Ratio: >90 dB typical
• Phantom Power: +15 Volts DC, regulated low noise
• Connectivity: Bluetooth: v5.0, up to 30M range, Class 2 device
• Power Requirements: 105 to 125 VAC / 50 Hz - 60 Hz, 15 W typical. Export units configured for country of destination
• Dimensions (HWD): 1.75" x 19.0" x 6.0" (4.45 cm x 48.3 cm x 15.2 cm
• Weight: 6.2 lbs. / 2.8kg
