About: Art Pro Audio MYMONITORII Personal Headphone Monitor Mixer

The MyMonitor II is a solution for musicians who want precise control of their headphone mix on stage or in the studio.

Connect the MyMonitor II between your microphone and the PA system, then dial in the perfect blend of your mic, an instrument input, and a monitor signal from the mixing console. It features both 1/4 and 1/8 headphone outputs so you never have to hunt for an adapter.

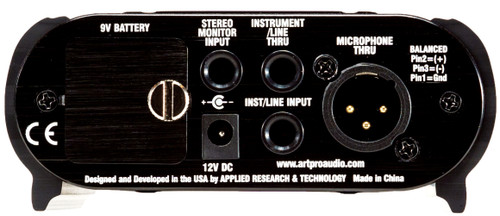

The XLR connections will pass phantom power for use with active microphones, and the switchable mute will silence the mic without any pops. The instrument input is switchable between line and instrument levels, and Thru jacks send your signals on to the PA system.

The MyMonitor II can be powered by the included DC adapter or a 9V battery.

No monitor engineer? No problem.

Features:

• Blend a Mic, Instrument, and Stereo Monitor Source
• Microphone Input and Thru with Pop-Free Mute Switch
• XLR Connections Pass Phantom Power for Active Mics
• Instrument / Line Input and Thru Jacks
• 1/4" and 1/8" Stereo Headphone Outputs
• 9V Battery and 12V DC Operation

Specifications:

• Inputs: XLR, 1/4"
• Outputs: XLR, 1/4"
• Input Impedance: 4.5k Ω (Mic), 1m Ω (Instrument), 100k Ω (Stereo Monitor, lLne)
• Output Impedance: 47 Ω (ea. Headphone Output)
• Maximum Input Level: +6 dBu (Mic), +12 dBu (Instrument), +32 dBu (lLne), >+32 dBu (Stereo Monitor)
• Maximum Output Level: +12dBu (headphones)
• Maximum Gain: 47 dB (Mic), 41 dB(Instrument), 21dB(Stereo Monitor, Line)
• Power Requirements: 12VDC @ 150mA (Adaptor Included) or 9VDC Battery
• Dimensions (LWH): 4.1″ x 4.6″ x 1.85″, 10.4cm x 4.7cm x 11.7cm
• Weight: 1.10 lbs (0.50kg)
