Art Pro Audio PATCH IN Compact Pedalboard Patchbay and Splitter to Extends the Connectivity of a Pedalboard

ART Pro Audio

Art Pro Audio PATCH IN Compact Pedalboard Patchbay and Splitter to Extends the Connectivity of a Pedalboard

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$38.99

SKU: PATCHIN

Condition: New

Availability: Special Order - Usually Ships in 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: Art Pro Audio PATCH IN Compact Pedalboard Patchbay and Splitter to Extends the Connectivity of a Pedalboard

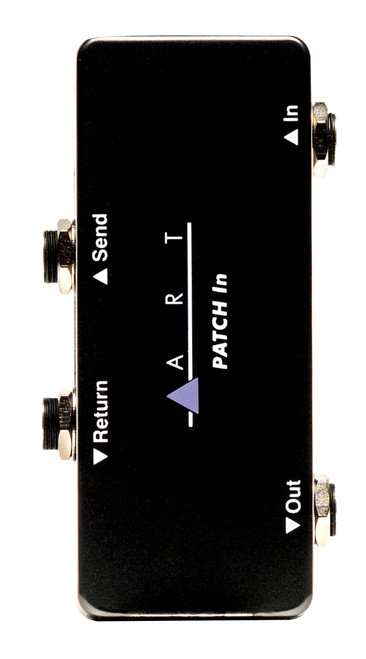

The Patch In is a patchbay and splitter that extends the connectivity and flexibility of your pedalboard.

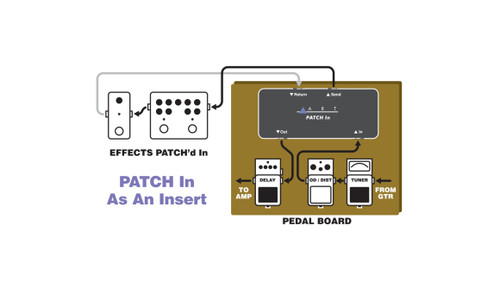

Its designed for players who have a standard board layout, but occasionally want to add other effects without having to reconfigure or rewire. Place a Patch In at any point in your signal path, and you can easily insert effects as you need them.

When nothing is connected to the Return jack, the input signal is routed to both the Send and Out jacks for parallel processing or running two amplifiers. This also lets your board adapt to amps with and without effects loops. When an effect loop is available, use the Send and Return jacks on the Patch In for 4-Cable Method connections. For amps without a loop, just connect the last effect in the signal chain to the input of the amplifier, with no other changes required.

Compact and fully passive, the Patch In doesnt require external power, is simple to integrate, and gives smaller pedalboards the versatility of a tour-grade giant - but only when you need it.

Features:

Compact Patchbay and Splitter
Adds an Insert Point Anywhere in Your Signal Chain
Splits Signal when Nothing is Connected to the Return Jack
Consolidates I/O on Compact Pedalboards
Passive Design - No Power Required

Specifications:

Power Requirements: The Patch In is a fully passive device, and does not require a power source
