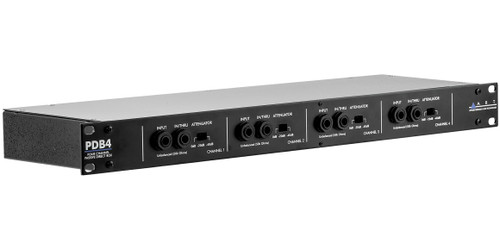

Art Pro Audio PDB4 4-Channel Passive Rackmount DI Connects Multiple Unbalanced Instrument, Line, or Speaker Signals to Balanced Inputs

$99.00
$109.00
9% Off
SKU: PDB4
Condition: New
Availability: Special Order - Usually Ships in 3-5 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: Art Pro Audio PDB4 4-Channel Passive Rackmount DI Connects Multiple Unbalanced Instrument, Line, or Speaker Signals to Balanced Inputs

The PDB4 is a four-channel passive DI in a 1U rackmount format. It is ideal for connecting multiple unbalanced instrument, line, or speaker signals to balanced inputs.

Each input signal is sent to a balanced, transformer-isolated XLR output and a parallel Thru jack, so it can simultaneously be connected to an amplifier on stage.

All channels feature a switchable ground lift to help eliminate hum, and switchable attenuation with up to 40 dB of gain reduction to handle high signal levels.

As a fully passive design, the PDB4 doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps.

Features:

  • 4 Independent Channels
  • 1/4" TS Inputs and Thru Connectors
  • Transformer-Isolated Balanced XLR Outputs
  • Switchable Ground Lift per Channel
  • Switchable Attenuation (0 dB, -20 dB, -40 dB) per Channel
  • Passive Design - No Power Required
  • 1U Rackmount Enclosure

Specifications:

  • Active or Passive: Passive
  • Inputs: 4x 1/4" TS
  • Outputs:
    • 4x XLR
    • 4x 1/4" TS Thru
  • Input Impedance: 50 kΩ
  • Output Impedance: 600Ω
  • Controls Attenuator:
    • (0 dB, -20 dB, -40 dB)
    • Ground Lift (All per Channel)
  • Frequency Response: 10 Hz - 50 kHz +/- 0.5 dB @ +4 dBu
  • Power Requirements: N/A
  • Dimensions (HWD):
    • 1.75 x 19 x 6
    • 4.4 cm x 48.3 cm x 15.2 cm
  • Weight: 6.5 lbs / 2.95 kg
