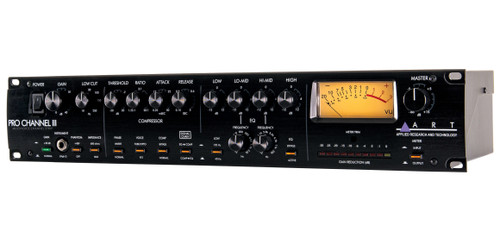

About: Art Pro Audio Pro Channel III Multivoice Channel Strip

The Pro Channel III is a fully-featured channel strip with selectable mic impedance, two compression voicings, and semi-parametric EQ.

New to this version, the compressor has both Tube/Opto and FET modes for smooth or punchy dynamic control. The compressor and EQ sections can now be reordered at the touch of a button, and the front panel has been streamlined for a faster, simpler workflow.

The mic preamp features a discrete FET input stage and up to 60 dB of preamp gain, with a variable low cut filter to eliminate rumble and tighten bass.

The EQ section offers a switchable low shelf frequency, variable low-mid and high-mid frequencies with over 4 octaves of range per band, and a 12 kHz high shelf.

The Pro Channel III is also a versatile instrument DI. Connecting to the front 1/4 input will override the rear XLR input so you can record direct tracks without disconnecting your mic or line signal.

Designed for recording musicians seeking a versatile character preamp with real tube warmth, the Pro Channel III offers the flexibility and fidelity to sculpt and enhance any source.

Features:

• Class A FET Microphone Preamp
• Selectable Microphone Impedance
• 1/4" High Z Input on Front Panel
• Compressor and EQ Sections with Switchable Order and Independent Bypass
• Tube/Opto and FET Compressor Voicings
• 4-Band Semi-Parametric EQ and Variable Low Cut Filter
• Insert Point after Preamp Stage
• +4 dBu or -10 dBv Operation
• Universal Internal Power Supply

Specifications:

• Input Impedance: 600Ω / 47 kΩ (XLR) >800 kΩ (Instrument) 7.5 kΩ (Insert)
• Output Impedance: < 47Ω (XLR)
• Maximum Input Level: +22 dBu (+4dBu Mode) +13 dBu (-10dBV Mode) Balanced
• Maximum Output Level: +26dBu (Balanced), +20dBu (Unbalanced)
• Maximum Gain: 40dB Variable Input Gain 20dB Switchable Boost , 15dB Variable Output Gain
• Frequency Response: 12Hz to 100kHz (+0, -1dB)
• Total Harmonic Distortion: >90dB
• Equivalent Input Noise: -128dBu (Mic / Line) -109dBu (Instrument)
• CMRR: >90dB
• Power Requirements: 100 – 240V 50Hz / 60 Hz 25W
• Dimensions (HWD): 3.5” x 19” x 9.2”, 8.9cm x 48.3cm x 23.3cm
• Weight: 10.5lbs / 4.76kg
