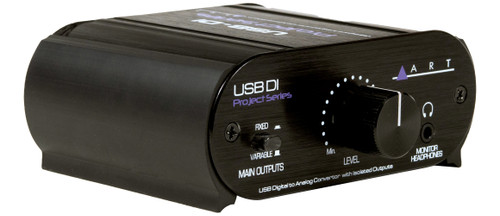

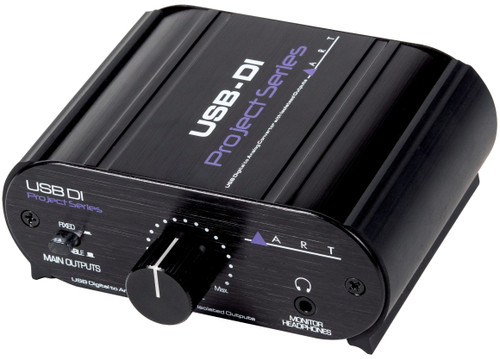

About: Art Pro Audio USB DI USB Direct Box Digital-to-Analog Conversion and Balanced XLR Outputs

Need to get audio from a computer to a mixer or PA? The USB DI offers high-quality digital-to-analog conversion and balanced XLR outputs, providing a pristine signal to any analog sound system.

Custom output transformers isolate the digital and analog elements, eliminating ground loops and system noise.

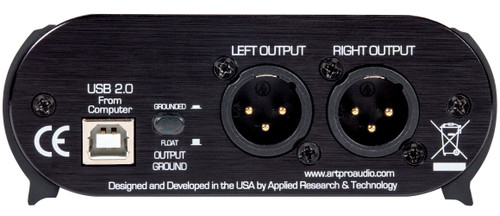

A front panel switch selects between a fixed volume at the main outputs or variable adjustment with the Level knob, which also controls the headphone output. A ground lift switch on the rear panel engages an extra layer of hum protection.

The USB DI is class-compliant and bus-powered, so it doesn’t require driver software or an external power supply.

Looking to connect Bluetooth® audio? Check out the BT-DI.

Features:

• USB 2.0 Connection
• Supports 32 kHz, 44.1 kHz, and 48 kHz Sample Rates
• Transformer-Isolated XLR Outputs
• Fixed or Variable Main Output Level
• Level Control Adjusts Monitor or Main + Monitor Volume
• Switchable Ground Lift
• Class Compliant
• Bus Powered

Specifications:

• Active or Passive: Active
• Inputs USB: 2.0 (Type B Connector)
• Outputs:
• 2x XLR
• 1x 1/8" TRS Headphone
• Maximum Output Level:
• +.75 dBu (Variable Output Mode)
• -1.5 dBu (Fixed Output Mode)
• Controls: Fixed / Variable Output, Level, Ground Lift
• Frequency Response: 20 Hz - 20 kHz +/- dB
• Supported Sample Rates: 32 kHz, 44.1 kHz, 48 kHz
• Dynamic Range: 96 dB A-Weighted (Typical)
• Total Harmonic Distortion: <0.02% (Typical)
• Power Requirements: USB Bus Powered, 500 mA Max
• Dimensions (HWD): 1.87" x 4.61" x 4.27" (4.75 cm x 11.7 cm x 10.8 cm)
• Weight: 1.89 lbs / .86 kg (Packaged)
