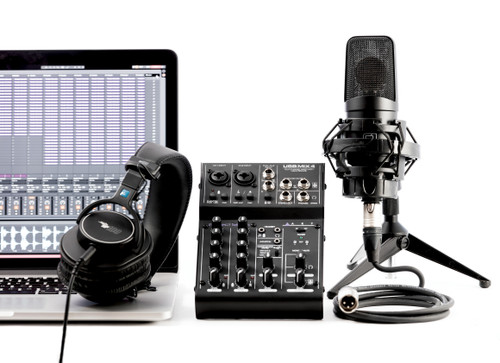

About: Art Pro Audio USBMIX4 4-Channel USB Recording Mixer

Designed with streamers and content creators in mind, the USB Mix 4 is a compact analog mixer with an integrated digital audio interface.

The mixer section has four channels. Channels 1 and 2 have combo inputs for XLR and 1/4 signals, and 2-band EQ for tone shaping. Channel 1 also has switchable phantom power for use with condenser microphones, and Channel 2 has a switchable Hi-Z mode so you can directly connect an instrument level signal from a guitar or bass. Channels 3 and 4 are configured as a stereo pair.

In addition to the standard connections, there are dedicated jacks for a headset mic and media player. A convenient switch on the front panel lets you select the source for the stereo audio interface. Choose from the full stereo mix, only channels 1 and 2, or a loopback mode that combines the mixer inputs with the audio playback from your computer to easily share everything youre hearing with your streaming audience.

Combining the familiar workflow of a traditional mixer with easy digital integration, the USB Mix 4 is a simple and intuitive foundation for home and mobile recording.

Features:

• High Performance Low Noise Design
• Switchable +48v Phantom Power (CH1)
• Assignable USB Record Source
• Independent Level Controls for Main and Headphone/Monitor Outputs
• 1/8th-inch Headset Connectors (Mono Mic In and Stereo Headset Out)
• Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
• Operates on USB Power or 5VDC External Power Supply (Included)

Specifications:

• Inputs:
• XLR & 1/4" Balanced Combo Jack (CH 1 & CH2)
• 1/4" TRS Balanced (CH3 & CH4)
• 1/8" TRS Aux/MP3, 1/8" Headset Mic
• Outputs:
• 1/4" TRS Balanced Main Mix Outputs
• 1/4" TRS Stereo Output & Monitor Outputs
• Headphones: 1/8" Headset Output
• Maximum Input Level: +8 dBu (Mic), +16 dBu (1/4" Input)
• Maximum Output Level: +15 dBu Main Mix Outputs
• Maximum Gain: >55 dB (Mic), >37 dB (Instrument), 5 dB (CH3 & CH4)
• Total Harmonic Distortion: <0.02% @ 1 kHz
• Signal to Noise Ratio: >90 dB Typical (Ref 0dBu)
• Phantom Power Switch: selectable, +48 V DC, filtered, current limited
• Connectivity: USB Class Compliant plug-and-play Mac / PC Interface
• Resolution:
• 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer
• 0.4 ms A/D latency @ 44.1 kHz
• Power Requirements: Via USB or 5VDC @ 500mA
• Dimensions (HWD): 1.75″ x 5.1″ x 7.5″ (4.5 cm x 13.0 cm x 19.1 cm)
• Weight: 1.56 lbs. / .71 kg
• Note: 0 dBu = 0.775Vrms
