AudioControl

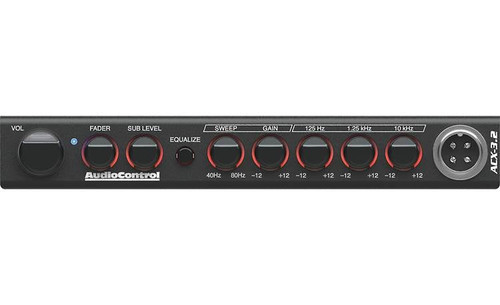

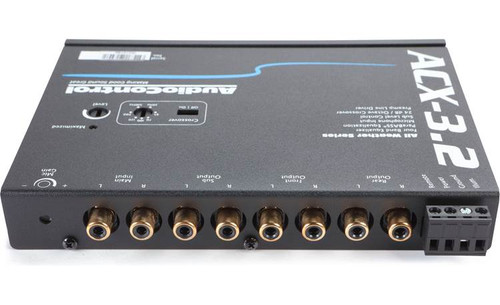

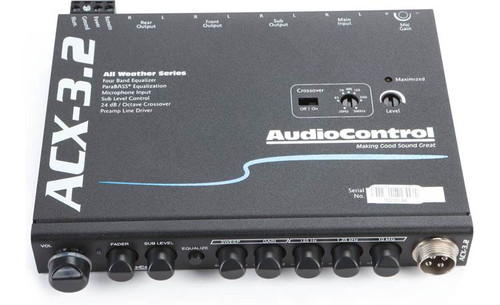

AudioControl ACX-3.2 In-Dash All-Weather EQ & Crossover w/Paging Mic - Black

$548.00
$449.95
SKU:
ACX-3.2
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

AudioControl ACX-3.2 In-Dash All-Weather EQ & Crossover w/Paging Mic - Black

$548.00
$449.95

About: AudioControl ACX-3.2 In-Dash All-Weather EQ & Crossover w/Paging Mic - Black

The ACX-3.2 all-weather sound processor is a high-output pre-amp, for all systems on-road, off-road, or off-shore. The ACX-3.2 can serve as the main control unit in your audio system allowing you to control the output to all of your amplifiers. It features a 4-band graphic equalizer that can be used to tweak your system, depending upon your mood or music selection. The built-in crossover gives you the ability to separate high and low frequencies, and send them to the appropriate amplifier and speakers, maximizing the performance of your system. Adding an ACX-3.2 to your system gives you the assurance that your system can play longer, louder, and cleaner with less distortion.

The low-profile ACX-3.2 takes your experience to another level by combining all of its audio features with a PA microphone!
If you are out on your boat ACX-3.2 allows you to play music and communicate with the person wakeboarding or tubing behind you. Own a food truck? This is great for playing music inside for the cooks, outside for the patrons, and allowing you the ability to call out an order number for a waiting customer.

The ACX-3.2 is a game changer, by offering a quality real-world solution for all of those unique installation needs. This multi-functional piece is part of our all-weather line-up making it the perfect solution for any adventure.

Features:

  • 4-Band Stereo Graphic EQ
  • Parabass® Low-Frequency Contouring
  • Variable 24 Db/Octave Linkwitz-Riley Crossover
  • Front, Rear, and Subwoofer Outputs
  • Master Volume, Fader, and Sub-Level Control
  • Parabass® Bass Control
  • High-Gain Input Stage
  • Line Driver: 13-Volts Peak Output
  • Dash or Console-Mountable

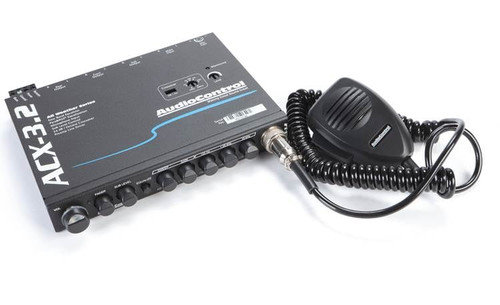

  • Included Paging Microphone
  • Selectable Illumination (red or blue)

Specifications:

Inputs

  • Preamp Inputs: 1 (2 channels)
  • Input Gain: 0-20 dB
  • Input Impedance: 20 kΩ

Outputs

  • Preamp Outputs: 6
  • Maximum Output Level: 7.5 Vrms / 9.5 V Peak
  • Output Impedance: 150 Ω

Performance

  • Frequency Response: 20Hz-20kHz ±.01dB
  • Total Harmonic Distortion: 0.03%
  • Signal to Noise: 123 dB (inputs set to Balanced)
  • EQ Frequencies: 40 Hz – 80 Hz (parametric), 125 Hz, 1.25 kHz, 10 kHz
  • EQ Cut/Boost: ±10 dB
  • Crossover type: 24 dB/octave Linkwitz-Riley
  • Factory Crossover Setting: 100 Hz
  • Microphone Frequency Response: 100 Hz – 6 kHz
  • Microphone Maximum SPL: 123 dB

Control

  • Remote In

General

  • Power Supply: High Headroom PWM Switching
  • Current Draw: 300mA
  • Recommended Fuse Rating: 1A

Weights & Dimensions:

  • Dimensions: 6.75”W x 5”D x 1”H
  • Weight: 1.6lbs

What's in the Box:

  • ACX-3.2
  • Paging Mic
  • Mounting Brackets
  • Power Connector
  • Manual
  • Warranty
