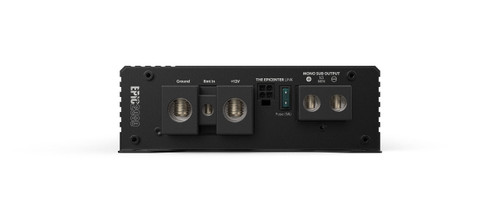

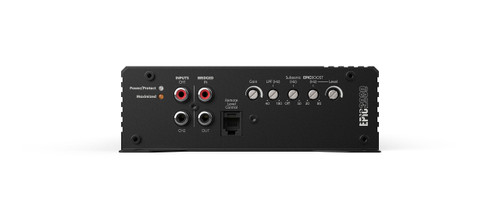

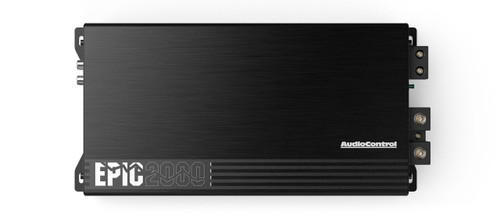

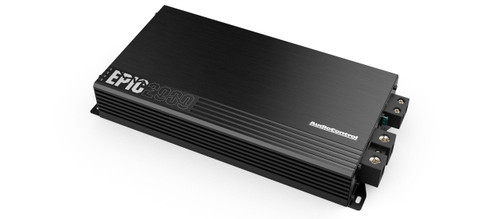

About: AudioControl EPIC2000 EPIC Series 2000W RMS Monoblock Amplifier

The AudioControl EPIC Series Amplifier delivers powerful, heart-pounding bass in a compact, thermally efficient design. Perfectly paired with The Epicenter Bass Restoration Processor (sold separately), it enhances your bass experience to new levels. This amplifier offers exceptional sound quality and is the only AudioControl amplifier to include a bass knob for easy control.

Features:

• Digital Class-D Amplifier: Powerful yet compact and stable down to a 1 ohm load.
• 0-12dB Variable Bass Boost Q: Selects the frequency to boost

• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.

• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).

• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.

  • Output Over-Current Protection (OCP)

  • Input Over-Voltage Protection (OVP)

  • Input Under-Voltage Protection (UVP)

  • Output DC-Offset Protection (DCP)

  • Over-Temperature Protection (OTP)

• THE EPICENTER LINK: Connects to EPIC (Power & Remote) to simplify the installation of The Epicenter

Specifications:

• Mono subwoofer amplifier
• 800 watts RMS x 1 at 4 ohms
• 1400 watts RMS x 1 at 2 ohms
• 2000 watts RMS x 1 at 1 ohm
• Bridgeable with a second EPIC2000 to produce 4000 watts RMS x 1 at 2 ohms
• Class D amp technology
• Frequency response: 10-190 Hz
• Variable low-pass filter (40-180 Hz, 12 dB/octave)
• Variable subsonic filter (Off-50 Hz, 12 dB/octave)
• EPICBoost™ Variable Frequency Bass Boost (0-12 dB at 30-80 Hz)
• ACR-E wired remote control included
• Power harness for accessory preamp included
• Compatible with AudioControl line output converters and Epicenter bass enhancers
• Pre-installed 1A fuse included for accessory power connection
• Preamp inputs only
• Wiring, fuse, and hardware not included with amplifier:
• 1/0-gauge power and ground leads and a 200A fuse recommended
• Dimensions (W x H x D): 12.88" x 2.01" x 6.09"

What's in the Box:

• Mono subwoofer amplifier (installed 1A mini fuse for Link output)
• ACR-E Remote level control
• 16' Remote level control cable (RJ-12 connectors on both ends)
• 39" Epicenter link cable (4-pin connector on one end/ 3-pin Epicenter power & ground connector on other end)
• Four 5/8" screws
• Four 3/8" screws
• 2 Allen keys (3mm & 2.5mm)
• Spare 1A mini fuse
• Quickstart guide
