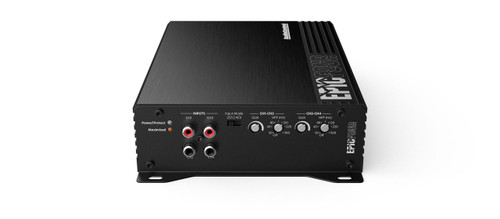

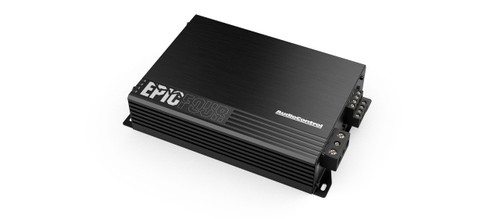

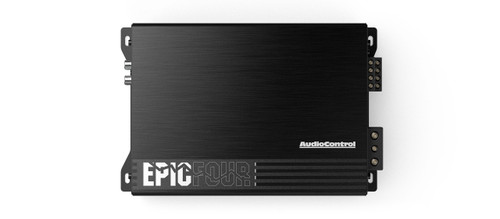

About: AudioControl EPICFOUR EPIC Series 4-Channel Car Amplifier — 100W RMS x 4

The AudioControl EPIC Series 4-Channel Amplifier delivers top-quality sound in a compact, thermally efficient design. Engineered with a high-current Class D design, it’s 2Ω stable, ensuring maximum power output while maintaining efficiency. With a smart auto-reset protection circuit and solid power/speaker terminals secured by hex screws, the EPIC Series amplifier offers reliable, exceptional sound quality in a rugged, space-saving package.

Features:

• Digital Class-D Amplifier: Powerful yet compact, designed to handle 2 ohm loads for high output.

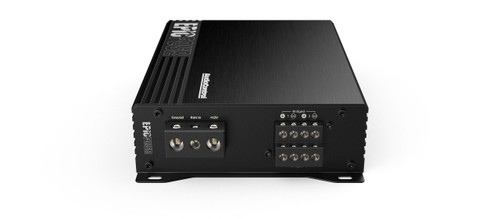

• Direct Wire Terminals with Hex Screws: Provide solid, reliable connections.

• 4-Gauge Power Terminal and 8-Gauge Speaker Terminal: Designed for maximum current flow.

• 91dB+ Signal-to-Noise Ratio (@ CEA Standard): Ultra-efficient idle draw (< 0.5-1A).

• Smart Auto Reset Protection Circuit: Multiple protection modes are in place to prevent damage if your amplifier encounters an issue.

  • Output Over-Current Protection (OCP)

  • Input Over-Voltage Protection (OVP)

  • Input Under-Voltage Protection (UVP)

  • Output DC-Offset Protection (DCP)

  • Over-Temperature Protection (OTP)

Specifications:

• 4-channel car amplifier
• 100 watts RMS x 4 at 4 ohms
• 200 watts RMS x 4 at 2 ohms
• 400 watts RMS x 2 bridged at 4 ohms
• Class D amp technology
• Frequency response: 10-22,000 Hz
• Variable high-pass filters (Off/50-500 Hz, 12 dB/octave)
• Preamp inputs only
• Wiring, fuse, and hardware not included with amplifier:
• 4-gauge power and ground leads and an 80A fuse recommended
• Dimensions (W x H x D): 9.42" x 2.01" x 6.09"

What's in the Box:

• 4-Channel amplifier
• Four 5/8" screws
• Three Allen keys (3mm/ 2.5mm/ 2mm)
• Quickstart guide
