AudioControl

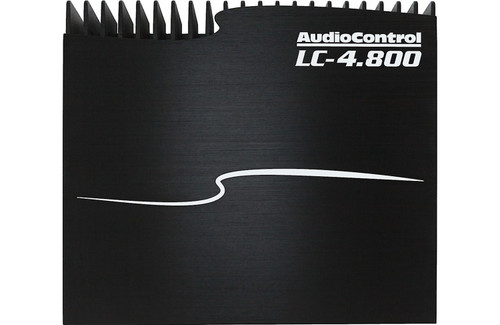

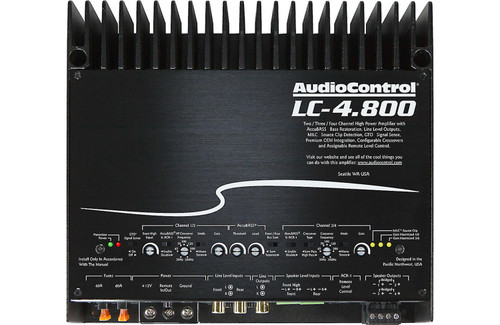

AudioControl LC-4.800 4-Channel Car Amplifier

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$999.95

$929.95

SKU:: LC-4.800
Condition:: New
Availability:: Special Order - Usually Ships in 2-4 Days
Shipping:: Calculated at Checkout

AudioControl LC-4.800 4-Channel Car Amplifier

$999.95

$929.95

Description
Shipping & Returns

Description

About: AudioControl LC-4.800 4-Channel Car Amplifier

“Making Good Sound Great” is our passion at AudioControl and that legacy continues with the LC-4.800 multi-channel amplifier.

This unique high power design features six active speaker level inputs with summing allowing you to interface and integrate with most factory installed source units. The patent pending AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features include our GTO signal Sense, Configurable Crossovers and assignable remote level control. We have incorporated years of technology into the LC-4.800 making this a perfect solution based amplifier.

Features

Configurable as 4/3/2 channel amplifier
4 x 200 watts @ 2 ohms
4 x 125 watts @ 4 ohms
400 watts @ 4 ohms bridged
AccuBASS® Processing
MILC™ Maximum Input Level Control (Patent Pending)
GTO™ Signal Sense
Independent Linkwitz-Riley Alignment crossovers
Summable active speaker-level inputs (6 channels) for OEM integration
4 preamp inputs
2 assignable preamp outputs
PFM Subsonic Filter
Optional ACR-1 assignable remote control
Solid One-Piece Aluminum Chassis

Specifications

Inputs

Preamp Inputs: 4 balanced
Input Voltage Range: 250 mV – 8 Vrms
Speaker Level Inputs: 6
Speaker Level Input Voltage Range: 3 V – 40 Vrms

Outputs

Rated Continuous (RMS) Power at 14.4V:Preamp Outputs: 2
- 4 Ω – 125 W x 4 RMS
- 2 Ω – 200 W x 4 RMS
- Bridged 4 Ω – 400 W RMS
Maximum Preamp Output: 8.5 V RMS

Performance

Frequency Response: 10 Hz – 30 kHz
Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
THD+N: < 0.1%
Minimum Power / Ground Wire Gauge: 3 AWG wire
Fuse Rating: 2 x 40 A
Crossover: Linkwitz-Riley, Adjustable From 30 Hz – 300 Hz

Weights & dimensions

Dimensions: 9″W x 7.95″D x 2.1″H
Weight: 5.0lbs (2.0kg)
