Descriptions

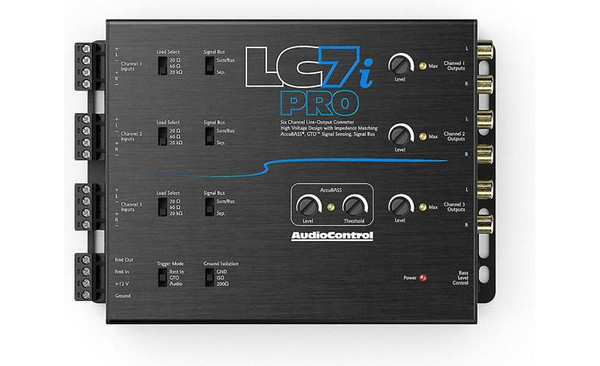

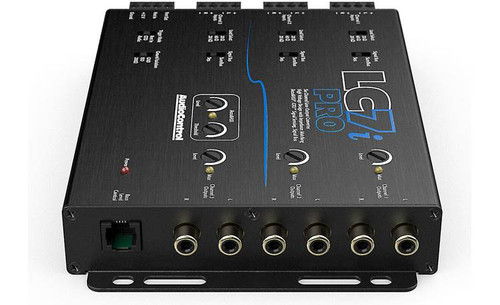

About: AudioControl LC7i PRO 6 Channel Line Out Converter with AccuBASS & Dash Remote

AudioControl brings you our most advanced line of LOCs yet. OEM integration has never been easier with the host of intelligent built-in features like LMC™ (Load Matching Circuit), allowing even the most finicky factory sound systems to no longer be an obstacle to great sound. Installer-friendly trigger modes offer flexibility and an expedited installation time since the units can be turned on via GTO™ Signal Sense (DC offset), audio signal sensing, or standard remote 12 volt input. All PRO series products feature AudioContol’s patented AccuBASS® for restoring low frequency output diminished by factory processing, and an ACR-1 level control is included to dial in the perfect level for your subwoofer right from the comfort of the driver’s seat. The Pro series ensures that you will start with the clean, powerful signal you need to take your system from sounding good to sounding great.

Features:

• Six channels of active speaker-level inputs (up to 40V input handling)
• Fixed and variable outputs with discrete-level controls
• AccuBASS® processing for correction of bass roll-off
• Load Selection Switch
• GTOTM Signal Sensing
• Ground Isolation Switch
• ACR-1 dash remote included
• Compact design

Specifications:

• 6-channel line output converter with AccuBASS™ bass restoration
• 3 stereo (6 total) speaker-level inputs
  • Can handle up to 40V/400W each
• Selectable load impedances for factory radio integration
• Switchable channel summing for full-range signals
• Level-matching controls with maximized indicator LEDs
• 3 stereo (6 total) preamp outputs (up to 9.5Vrms)
• ACR-1 wired remote subwoofer level controller included
• GTO™ signal-sensing turn on
• 12-volt remote turn-on lead output
• Switchable ground isolation
• Recommended fuse rating: 2A
• Dimensions (L x D x H): 7″ x 5.1″ x 1.14″ (including speaker connectors)
• Weight: 1.15 lbs.
