AudioControl PNW-XN3 PNW Series 3-Way Crossover

AudioControl

AudioControl PNW-XN3 PNW Series 3-Way Crossover

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$259.95

$289.95

10% Off

SKU: PNW-XN3

UPC: 850038647537

Condition: New

Availability: Special Order - Usually Ships in 4-8 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: AudioControl PNW-XN3 PNW Series 3-Way Crossover

The PNW-XN3 is a 3-way passive crossover network designed to expand an existing 2-way component speaker system into a full 3-way setup by adding a dedicated midrange driver to your midbass and tweeter combination. It is an ideal solution when active crossovers or a DSP are not available or simply do not fit the budget.

Compatible with both AudioControl PNW and Altitude series speakers, the PNW-XN3 simplifies system design and installation by combining all crossover functions into a single network. This eliminates the need for separate crossovers for each individual driver, reducing wiring complexity and saving valuable installation time. Only one PNW-XN3 is required per complete 3-way front stage, supporting a total of six speakers.

When supplied with a full-range signal, the PNW-XN3 accurately divides frequencies and routes them to the appropriate drivers:

Midbass frequencies to 6.5-inch or 6×9-inch woofers (WF outputs)
Midrange frequencies to 2.75-inch or 3.5-inch midrange speakers (MD outputs)
High frequencies to tweeters (TW outputs)

The flexible input section allows the PNW-XN3 to deliver six channels of output whether it is fed by 2, 4, or 6 channels of input. As a fully passive crossover network, it requires no power, ground, or turn-on connections, further streamlining installation and improving reliability.

Compatible Speaker Combinations:

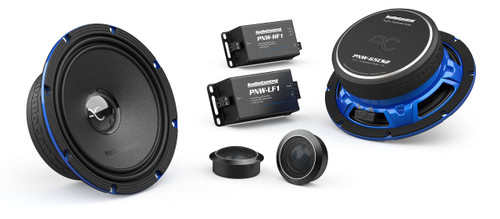

PNW-65CS2 + PNW-275
PNW-69CS2 + PNW-275
A65CS2 + A275C
A65CS2 + A35C
A69CS2 + A275C
A69CS2 + A35C

Features:

2nd Order Linkwitz-Riley Crossover Slope with Zobel Networks
350 Hz LP (PNW-65/PNW-69), 350 Hz to 4 kHz BP (PNW-275), 4 kHz HP (PNW-1)
150 Watts RMS

Specifications:

Crossover Type: 2nd order Linkwitz-Riley
Filter Type: HP / BP / LP
XO Frequency: 350Hz LP / 350-4k BP / 4K HP
Slope (Octave): -12 dB
Power Handling (RMS/Max): 150 Watts / 200 Watts
Attenuation (Tw / Md): 0 / -3 / -6 dB
Dimensions (L x W x H): 10.6" x 5.12" x 1.13" (270 x 130 x 28.60 mm)
