AudioControl

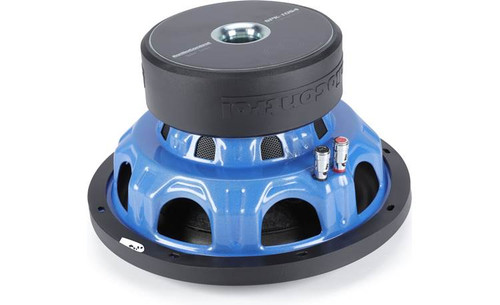

AudioControl SPK-10S4 10" 500W RMS Subwoofer - SVC 4 Ohm

$449.95
$299.99
SKU:
SPK-10S4
UPC:
609098903004
Condition:
New
Availability:
Special Order - Usually Ships in 4-8 Days
Shipping:
Calculated at Checkout

AudioControl SPK-10S4 10" 500W RMS Subwoofer - SVC 4 Ohm

$449.95
$299.99

About: AudioControl SPK-10S4 10" 500W RMS Subwoofer - SVC 4 Ohm

Are you a music fan who loves that low-end rumble? If so, look no further than the Spike Series Subwoofers! For over 45 years, we’ve been helping people take their car audio to the next level – and our latest product line is sure to enhance any vehicle’s sound system. We are proud to present the ultimate in versatility and durability with AudioControl’s Spike Series Subwoofers. These high-performance subwoofers come in a variety of sizes and power ratings to suit your audio needs. No matter what type of music you enjoy, Spike will take your listening experience to the next level. These subwoofers were designed to provide clear, precise bass for an immersive listening experience, so why wait? Load up your trunk with Spike Series Subwoofers today, and crank up your listening pleasure!

Spike Series Subwoofers feature a 3-layer voice coil former to handle some serious power. That means you can turn up the volume and still enjoy heart-pounding bass that’s free from distortion. You won’t believe the sound produced by the fiber matrix paper cone with mica coating – it’s like having a concert in your vehicle! Each Spike subwoofer comes with a protective grille to keep it safe from damage, so you can enjoy your journey with peace of mind.

Features:

  • High Excursion Design for Ultra-Low Bass
  • Fiber Matrix Paper Cone with Mica Coating
  • 3-Layer High Temp Voice Coil Former
  • Dual Damping System for Linear Bass Reproduction
  • Dual Dust Cap System for Enclosure Compression Control
  • Efficient Heavy-Duty Motor Design
  • Removable Subwoofer Grille Included

Specifications:

Thiele/small parameters

  • Nominal Impedance (Z)                 4 ohms
  • DC Resistance (Re) ]]                    3.2 ohms
  • Resonance Frequency (Fs)             41.2638 Hz
  • Piston Area (Sd)                           0.0314 m2
  • Force Factor (BL)                          13.6742 T.m
  • Mechanical Q Factor (Qms)            4.83
  • Electrical Q Factor (Qes)                0.6576
  • Total Q Factor (Qts)                      0.5788
  • Sensitivity 1W/M (SPL)                 83.7199
  • Mechanical Comp (Cms)               0.1004 mm/N
  • Moving Mass (Mms)                     148.1991 g
  • Linear Excursion (Xmax) .            14 mm
  • Volume Acoustic Comp (Vas)        13.8342 Ltr/ 0.4885 Cu ft
  • Reference Efficiency (NO.)            0.1419% RMS
  • Power (Pe)                                  500 Watts
  • Frequency Response                    20-200 Hz
  • Voice Coil Diameter                     2.5 in/63.5 mm
  • Displacement                               0.0626 cu ft/ 1.771 Ltr

In the box:

SPK-10S4, Manual, Warranty

Dimensions

  • Overall Dimensions: 10.748in/ 273 mm
  • Cut Out Diameter: 9.25 in/ 234 mm
  • Mounting Depth: 5.32in/ 135 mm
  • Mounting Height (w/o Grille): 0.59in / 15mm
  • Mounting Height (w/ Grille): 1.30in / 33mm
  • Motor Diameter (w/ Cover): 6.41in / 163mm

Ported enclosure

  • External Dimensions: 24.00″ W × 13.00″H × 11.25″D
  • Net Internal Volume:  1.01 ft3
  • Total Internal Volume:  1.36 ft3
  • Gross External Volume:  2.03 ft3
  • Material Thickness: 0.75″
  • Tuning Frequency: 37 Hz
  • Port Area” 17.25 inch2
  • Port Inlet:  1.50″W× 11.50″H
  • Port Length:  28.50″
  • F3 (Hz):  30

Sealed enclosure

  • External Dimensions: 20.00″W × 13.00″H × 11.00″D
  • Net Internal Volume:  1.11 ft3
  • Total Internal Volume: 1.17 ft3
  • Gross External Volume: 1.66 ft3
  • Material Thickness: 0.75″
  • F3 (Hz): 45.96
  • Qtc:  0.705
