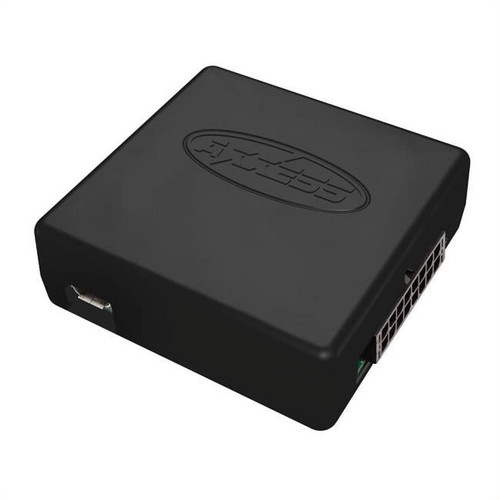

About: Axxess AX-ADDCAM Universal Add-On Camera Interface

The Axxess AX-ADDCAM interface is a camera switching interface that will provide up to (3) additional camera inputs to the factory radio, while still retaining the factory camera. With this interface a front camera, and also side cameras can be added to the factory radio. The cameras function automatically*, no human interaction required, unless desired to do so. Axxess has also created a line of vehicle specific “Plug & Play” harnesses for the AX-ADDCAM. These harnesses must be used along with the AX-ADDCAM. The AX-ADDCAM can also be used if the factory system does not originally come equipped with a backup camera, adding up to (4) cameras in this instance. In addition, the AX-ADDCAM can be used along with an aftermarket radio as well. Pending that the aftermarket radio has an input designated for a backup camera.

Features:

• (4) Camera inputs
• Programmable 12V 5-amp switched output (configured through the Axxess Updater program)
• Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires (configured through the Axxess Updater program)
• Can also be manually controlled, and used along with an aftermarket radio
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable

Components:

• AX-ADDCAM interface

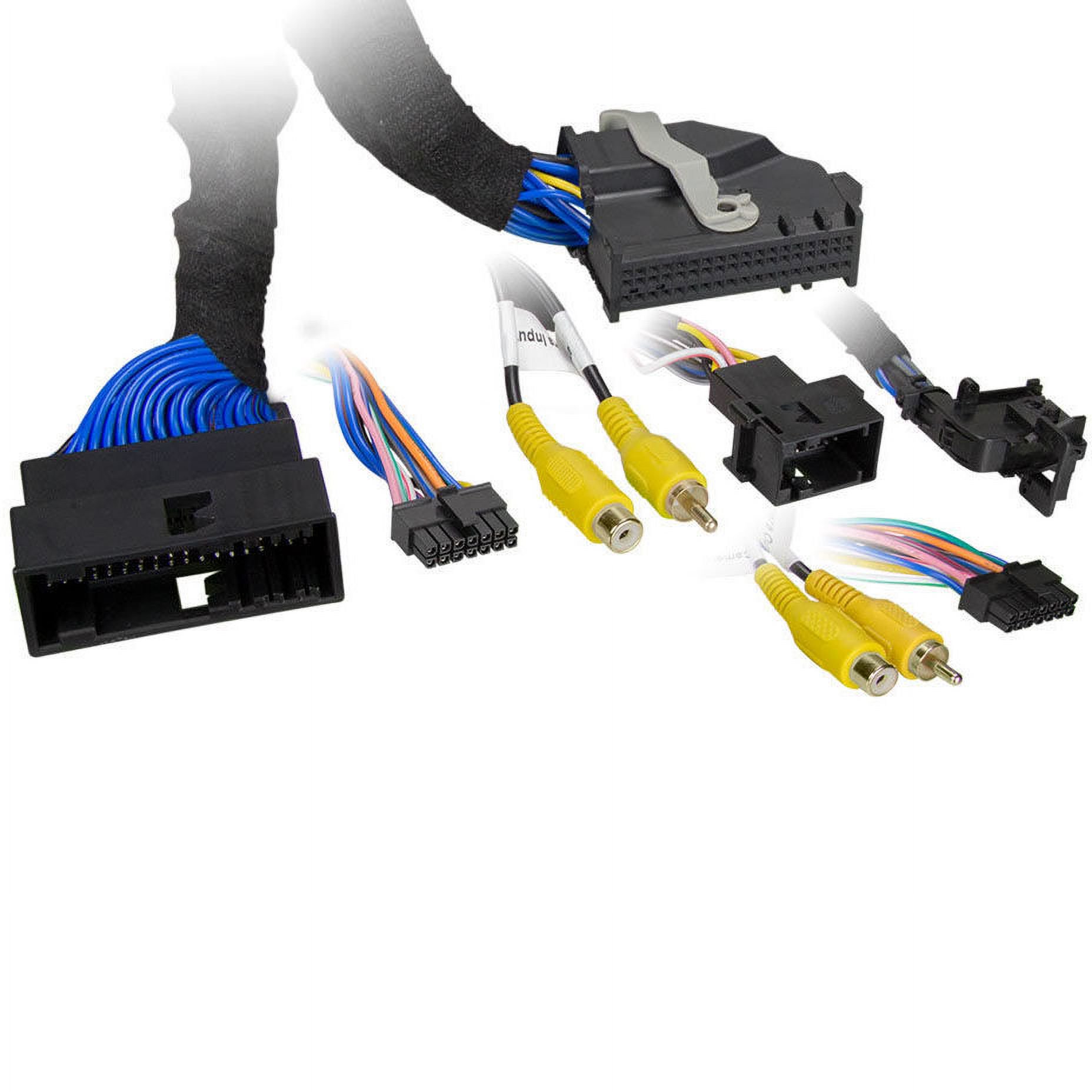

• • AX-ADDCAM harness
