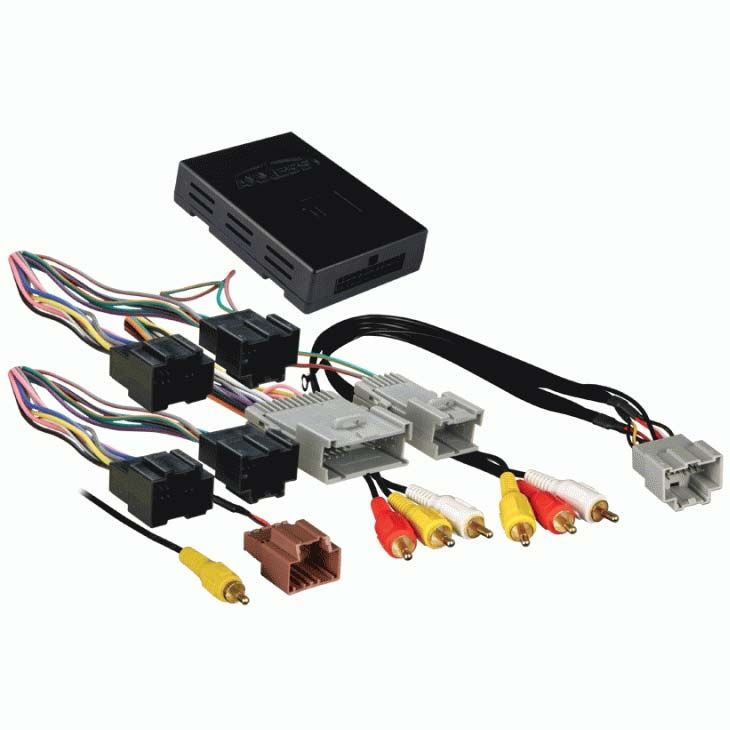

About: Axxess AX-ADGM100 Wiring Interface for Select 2000-Up GM Vehicles

The AX-ADGM100 interface is designed to allow you to install an aftermarket radio into your 2000 - and up General Motors vehicle and have it interface with the OEM Data-Bus. The AX-ADGM100 is designed to auto detect what type of vehicle it is installed and will automatically configure itself for operation. The plug-and-play harnesses easily plugs into your vehicles factory radio connectors. The interface retains full functionality of the OEM systems as well as all safety and warning chimes.

The AX-ADGM100 also retains the R.A.P or retained accessory power convenience feature, allowing you to use the radio after the vehicle is turned off as long as you don't open the doors. This interface has the capability of using the steering wheel controls on your new radio and easily up-datable with a USB connection. The AX-ADGM100 now has the required outputs for the installation of a navigation radio.

Features:

Easily remove the factory stereo in an otherwise impossible situation and replace it with an aftermarket stereo and retain all of the factory functions
Auto detect interface for easy configuration
Covers Class ll, LAN 29 and LAN 11 vehicles
Provides accessory (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Used in amplified or non amplified systems
Retains chimes
Provides NAV outputs (parking brake, reverse, mute, V.S.S.)
ASWC-1 harness included (ASWC-1 not included)
Retains OnStar/OE Bluetooth
Adjustable volume for chimes and OnStar
High level speaker input
Micro “B” USB updatable
Retains balance and fade
Retains factory Back-up camera and RSE (rear seat entertainment)
Retains OE Satellite (must have OE steering wheel controls)

Connections:

Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Orange/White – Dash Light Dimmer/Illumination
Blue/White – Amplifier turn on
White RSE/SYNC/SAT RCA - Left Auxiliary input
Red RSE/SYNC/SAT RCA - Right Auxiliary input
White RCA - Subwoofer connection
Red RCA - Center channel
Light green – (-) Parking brake lead
Blue/Pink – VSS (Vehicle speed sensor)
Green/Purple – (+) Reverse trigger
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)

Vehicle Applications:

2008 - and Up Enclave
2004 - 2005 Century
2005 - 2009 LaCrosse
2006 - 2011 Lucerne
2004 - 2007 Rainier
2004 - 2004 Regal
2002 - 2007 Rendezvous
2005 - 2008 Terraza

Cadillac

2003 - 2011 DTS
2003 - 2011 Escalade
2003 - 2011 Escalade EXT
2003 - 2011 Escalade ESV
2007 - 2009 SRX

Chevrolet

2003 - 2006 Avalanche
2012 - and Up Captiva Sport
2000 - 2005 Cavalier
2007 - 2010 Cobalt
2004 - 2012 Colorado
2005 - 2013 Corvette
2007 - 2009 Equinox
2003 - and Up Express
2006 - 2013 Impala
2006 - 2011 HHR
2000 - 2013 Impala
2014 - 2014 Impala Limited
2003 - 2009 Kodiak
2001 - 2012 Malibu
2004 - 2005 Malibu Classic
2000 - 2007 Monte Carlo
2003 - 2013 Silverado
2014 - 2014 Silverado 2500 / 3500 (Non-factory navigation models only)
2003 - 2006 SSR
2003 - 2014 Suburban
2003 - 2014 Tahoe
2002 - 2009 Trailblazer
2009 - and Up Traverse
2005 - 2008 Uplander

GMC

2007 - and Up Acadia
2004 - 2012 Canyon
2002 - 2009 Envoy
2003 - and Up Savana
2003 - 2013 Sierra
2014 - 2014 Sierra 2500 / 3500
2005 - 2014 TopKick
2003 - 2014 Yukon / Yukon XL

Hummer

2003 - 2009 H2
2006 - 2010 H3

Isuzu

2003 - 2008 Ascender
2003 - 2008 H-Series
2005 - 2009 HVR
2006 - 2008 I-Sseries

Oldsmobile

2001 - 2004 Alero
2002 - 2004 Bravada

Pontiac

2001 - 2005 Aztec
2007 - 2009 G5
2009 - 2009 G6 (5th digit of VIN must be a J, K, or L)
2010 - 2010 G6
2001 - 2005 Grand Am
2004 - 2008 Grand Prix
2005 - 2006 Montana SV6
2006 - 2009 Solstice
2000 - 2005 Sunfire
2007 - 2009 Torrent

Saab

2005 - 2009 9-7x

Saturn

2007 - 2009 Aura
2007 - 2010 Outlook
2006 - 2009 Sky
2005 - 2009 Relay
2008 - 2010 Vue

Suzuki

2007 - 2009 XL-7
