Axxess AX-ADXSVI-AU1 Interface Box Harness for Select 2006-2013 Audi Vehicles

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$43.99

SKU:: AX-ADXSVI-AU1
Condition:: New
Availability:: Special Order - Usually Ships in 2-3 Weeks
Shipping:: Calculated at Checkout

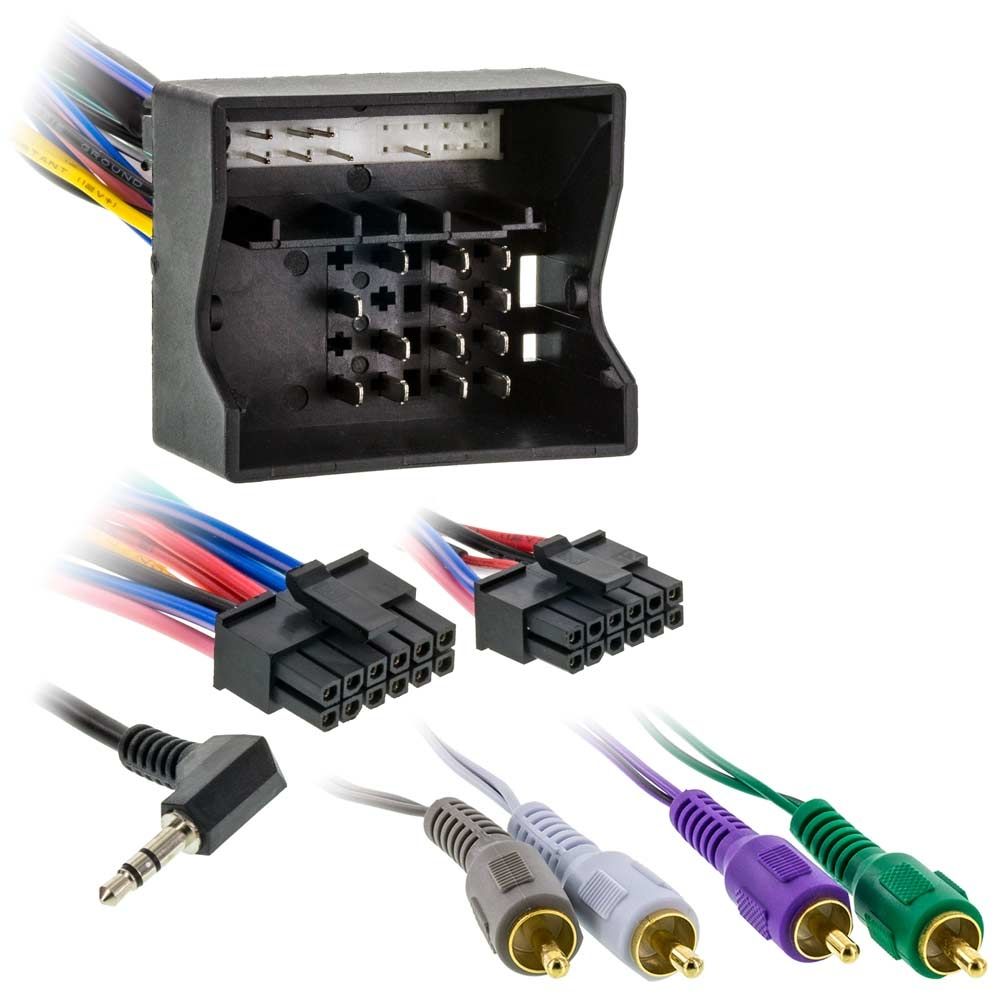

Axxess AX-ADXSVI-AU1 Interface Box Harness for Select 2006-2013 Audi Vehicles

$43.99

Description
Shipping & Returns

Description

About: Axxess AX-ADXSVI-AU1 Interface Box Harness for Select 2006-2013 Audi Vehicles

Features:

Allows the user to install the Axxess AX-ADXSVI interface box
Provides RAP (Retained Accessory Power)
Provides navigation outputs like reverse, parking brake, VSS, etc., and high level speaker input
Designed to install an aftermarket car radio into the factory databus systems
Includes a prewired ASWC-1 steering wheel interface connector
Provides 12 volt 10 amp car accessory
Retains balance and fader
Micro “B” USB updatable

Connections:

Yellow – 12V Constant
Red – 12V Accessory
Black - Ground
Orange/White – Dash Light Dimmer/Illumination
Blue/White – Amplifier turn on
Brown - Mute connection
Light green – (-) Parking brake lead
Blue/Pink – VSS (Vehicle speed sensor)
Black/Yellow - MOST-Bus volume adjustment
White RCA - Left Auxiliary input
Red RCA - Right Auxiliary input
Green/Purple – (+) Reverse trigger
Green – Left Rear Speaker (+)
Green with Black Stripe Left Rear Speaker (-)
White – Left Front Speaker (+)
White with Black Stripe – Left Front Speaker (-)
Purple – Right Rear Speaker (+)
Purple with Black Stripe – Right Rear Speaker (-)
Gray – Right Front Speaker (+)
Gray with Black Stripe – Right Front Speaker (-)
White RCA - Left front audio
Gray RCA - Right front audio
Green RCA - Left rear audio
Purple RCA - Right rear audio

Vehicle Applications:

Audi

2006 - 2013 A3
2005 - 2008 A4 with navigation
2005 - 2008 RS4 with navigation
2005 - 2008 S4 with navigation
2006 - 2006 A4 with Symphony Plus or with factory navigation
2006 - 2006 RS4 with Symphony Plus or with factory navigation
2006 - 2006 S4 with Symphony Plus or with factory navigation
2007 - 2008 A4 without navigation
2007 - 2008 RS4 without navigation
2007 - 2008 A4 without navigation
2008 - 2013 TT
