About: Axxess AXAC-GM1 Camera Data Interface with Pre-Wired Harness for Select 2015-2020 Chevrolet/GMC Vehicles

The AXAC camera-switching interface is designed to retain the factory backup camera while enabling the addition of aftermarket front and side cameras to the factory radio system. This interface supports up to four camera inputs— not including the factory camera—and uses CAN bus communication to automatically switch camera views based on vehicle functions such as reverse and turn signals, providing enhanced visibility and seamless integration without sacrificing factory features.
This LVDS camera switching interface is intended for use on 8” factory screens to enable a single camera input or add up to 4 cameras. This interface can be programmed to automatically activate the camera inputs in response to turn-signal or reverse triggers via the vehicle’s CAN bus. The Rear Video Assistant (RVA) option keeps the camera active throughout the trip, allowing the driver to monitor the trailer hitch, a baby in the rear seat, or rear cargo.

Features:

• Retains the factory backup camera while adding up to three additional CAN-activated cameras (4 total camera inputs)
• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt, 5-amp switched output (configured via the Axxess Updater program)
• Reverse trigger generated through CAN bus communication
• Turn signal trigger generated through CAN bus communication
• Four (4) programmable camera control wires (configured via the Axxess Updater program)
• Can also be manually controlled and used with an aftermarket radio
• Rear Video Assistant (RVA) option can be used to keep a camera active
• VSS (Vehicle Speed Sense) input and output
• Micro “B” USB updatable

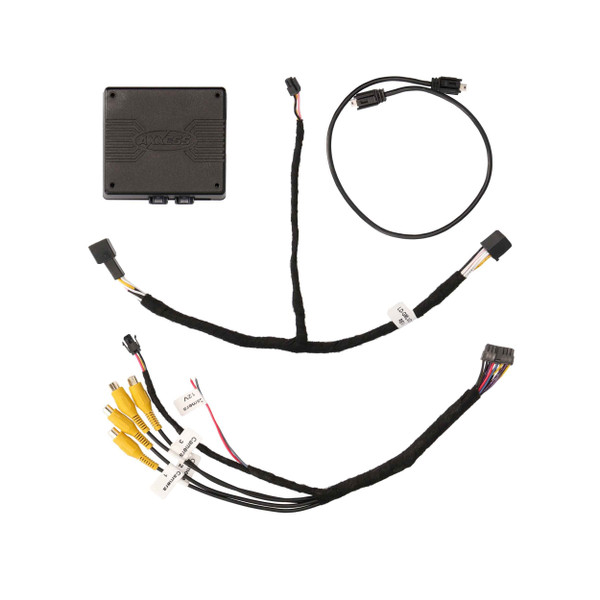

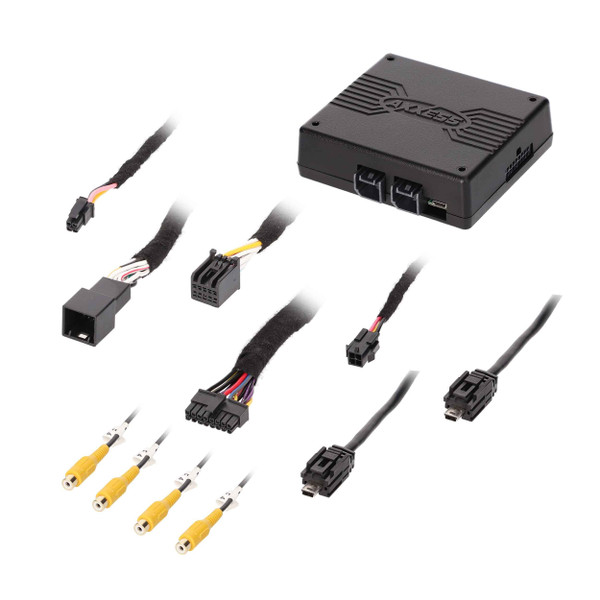

Includes:

• Interface
• Interface harness
• (2) Vehicle harness

Vehicle Applications:

Chevrolet

• Camaro 2016-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Colorado 2017-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Equinox 2018-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Silverado (LD – Old Style) 2019-2019 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Silverado  2016-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Silverado 2500 / 3500 2019-2019 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Spark 2016-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)

GMC

• Acadia 2017-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Canyon 2017-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Sierra 2016-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Sierra Limited 2019-2019 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Sierra 2500 / 3500 2019-2019 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Terrain 2018-2018 , (IO5 / IO6 – 8” MyLink Touchscreen)
• Yukon / XL 2015-2020 , (IO5 / IO6 – 8” MyLink Touchscreen)
