Descriptions

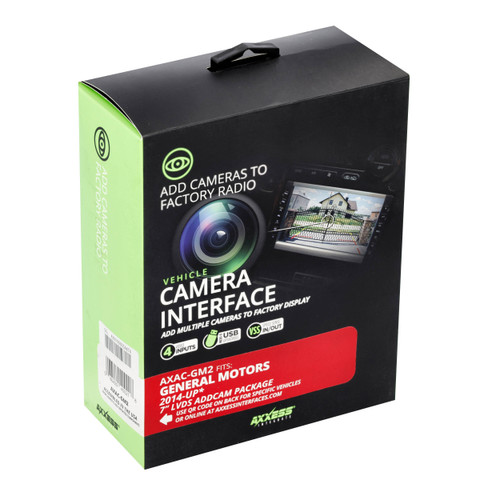

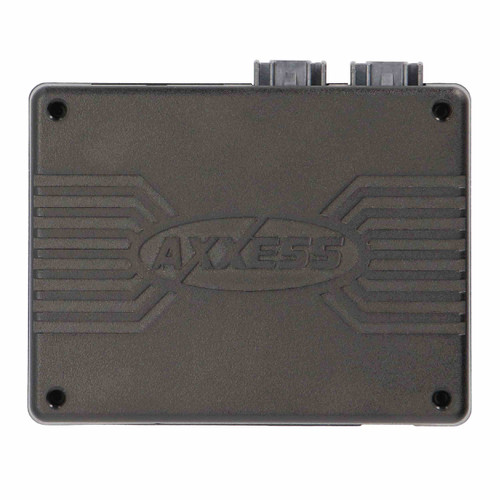

About: Axxess AXAC-GM2 Camera Data Interface with Pre-Wired Harness for Select 2014-2020 GM Vehicles

The AXAC camera-switching interface is designed to retain the factory backup camera while enabling the addition of aftermarket front and side cameras to the factory radio system. This interface supports up to four camera inputs— not including the factory camera—and uses CAN bus communication to automatically switch camera views based on vehicle functions such as reverse and turn signals, providing enhanced visibility and seamless integration without sacrificing factory features.
This LVDS camera switching interface is intended for use on 8” factory screens to enable a single camera input or add up to 4 cameras. This interface can be programmed to automatically activate the camera inputs in response to turn-signal or reverse triggers via the vehicle’s CAN bus. The Rear Video Assistant (RVA) option keeps the camera active throughout the trip, allowing the driver to monitor the trailer hitch, a baby in the rear seat, or rear cargo.

Features:

• Retains the factory backup camera while adding up to three additional CAN-activated cameras (4 total camera inputs)

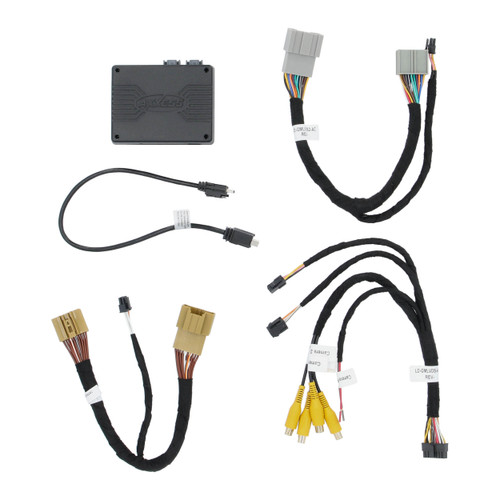

• Includes AXAC camera interface and vehicle-specific harness
• Programmable 12-volt, 5-amp switched output (configured via the Axxess Updater program)
• Reverse trigger generated through CAN bus communication
• Turn signal trigger generated through CAN bus communication
• Four (4) programmable camera control wires (configured via the Axxess Updater program)
• Can also be manually controlled and used with an aftermarket radio
• Rear Video Assistant (RVA) option can be used to keep a camera active
• VSS (Vehicle Speed Sense) input and output

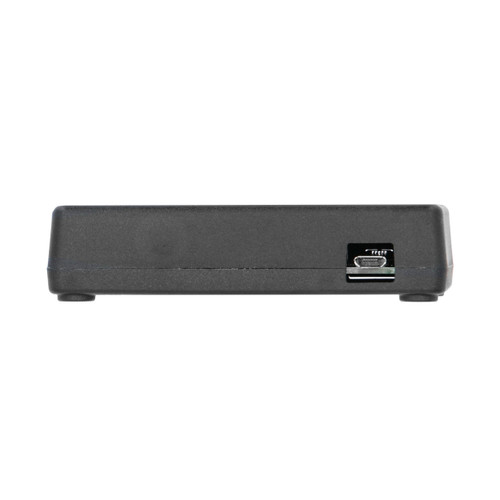

• Micro “B” USB updatable

Includes:

• Interface

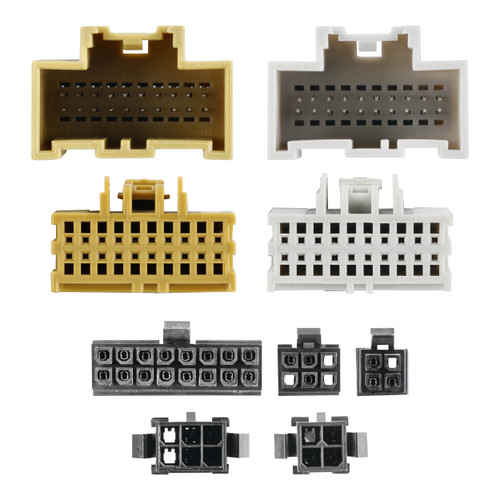

• Interface harness
• (2) Vehicle harness

Vehicle Applications:

Buick

• Enclave 2018-2019 , IOB – 7” MyLink Touchscreen
• LaCrosse 2014-2019 , IOB – 7” MyLink Touchscreen
• Regal 2014-2017 , IOB – 7” MyLink Touchscreen

Chevrolet

• Colorado 2015-2018 , IOB – 7” MyLink Touchscreen
• Impala 2014-2018 , IOB – 7” MyLink Touchscreen
• Silverado   2014-2019 , IOB – 7” MyLink Touchscreen
• Silverado 2500 / 3500 2019-2019 , IOB – 7” MyLink Touchscreen
• Suburban 2015-2020 , IOB – 7” MyLink Touchscreen
• Tahoe 2015-2020 , IOB – 7” MyLink Touchscreen
• Volt 2016-2017 , IOB – 7” MyLink Touchscreen

GMC

• Acadia 2017-2019 , IOB – 7” MyLink Touchscreen
• Canyon 2015-2018 , IOB – 7” MyLink Touchscreen
• Sierra 2014-2018 , IOB – 7” MyLink Touchscreen
• Sierra Limited 2019-2019 , IOB – 7” MyLink Touchscreen
• Yukon / XL 2015-2020 , IOB – 7” MyLink Touchscreen
