Descriptions

About: Axxess AXDSPL-FD2 DSP Interface with Pre-Wired Harness for Select 2011-Up Ford Vehicles

Upgrade the sound system with this cost-effective, easy-to-install DSP “Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.

Features:

• Designed for amplified and non-amplified models

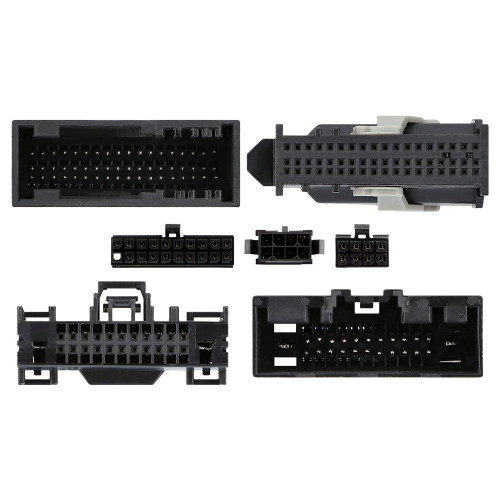

• Package includes the AXDSP-L and vehicle-specific T-harness
• 15-band graphic EQ or 5-band Parametric EQ
• Selectable high pass, low pass, or bandpass filters on each channel
• 4 inputs and 6 individually assignable outputs
• Independent equalization on each of the 6 outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Each channel can be delayed independently for up to 10 ms
• Easy behind the radio installation in most applications
• Can be used with OE and aftermarket radios
• Clipping detection and limiting circuits
• Internal header port for adding interface modules
• Bass knob included
• Retains OE voice prompts (Sync®)
• Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
• Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
• Read, write, and store configurations for future recall
• Password-protect feature is available in the mobile app
• Micro “B” USB updatable

Vehicle Applications:

Ford

• CMAX 2013-2017
• EcoSport 2016-2019
• Edge 2011-Up*
• Edge SEL (8” screen) 2014
• Edge Titanium (8” screen Sony) 2017
• Escape 2015-2019
• Expedition 2015-2017
• Explorer 2011-2019
• F-150 2014-2020*
• F-350 2019
• Fiesta 2011-Up
• Flex 2013-Up
• Focus 2013-Up*
• Focus SE (4 inch screen) 2017
• Focus Titanium (8” screen) 2017
• Fusion 2013-Up*
• Fusion SE (6×9 amplified rear deck speakers) 2017
• Mustang 2015-2023
• Ranger 2019-Up (w/ B&O)
• Taurus 2013-Up*
