About: Axxess AXDSPL-GL44 DSP Interface with Pre-Wired Harness for Select 2012-2017 GM Vehicles

Upgrade the sound system with this cost-effective, easy-to-install DSP “Lite” package that includes a vehicle-specific T-harness. It works with OEM or aftermarket radios to take fixed level/digitally controlled analog audio and convert it to 6 channels of analog signal for use with an aftermarket amplifier or DSP.

Features:

• Designed for amplified and non-amplified models

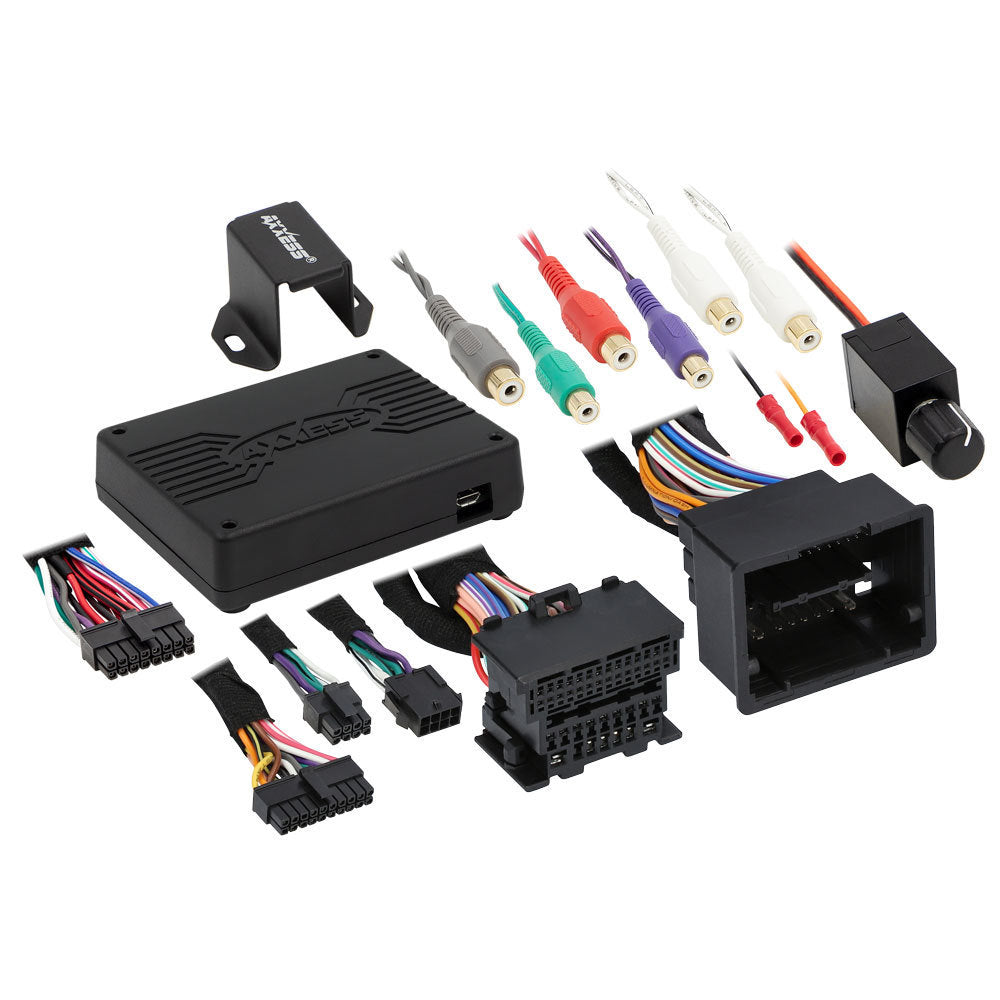

• Package includes the AXDSP-L and vehicle-specific T-harness
• 15-band graphic EQ or 5-band Parametric EQ
• Selectable high pass, low pass, or bandpass filters on each channel
• 4 inputs and 6 individually assignable outputs
• Independent equalization on each of the 6 outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Each channel can be delayed independently for up to 10 ms
• Easy behind the radio installation in most applications
• Can be used with OE and aftermarket radios
• Clipping detection and limiting circuits
• Internal header port for adding interface modules
• Bass knob included
• Retains OE voice prompts (OnStar®)
• Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
• Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
• Read, write, and store configurations for future recall
• Password-protect feature is available in the mobile app
• Micro “B” USB updatable

Vehicles Applications:

Cadillac

• Escalade 2012-2014
• SRX 2010-2012

Chevrolet

• Avalanche 2012-2013 (w/NAV)
• Camaro 2010-2015
• Equinox 2010-2017
• Express 2013-2015 (w/NAV)
• Malibu 2013-2015
• Malibu Limited 2016
• Silverado 2012-2013 (w/NAV)
• Silverado 2500/3500 2014
• SS 2014-2017
• Suburban 2012-2014 (w/NAV)
• Tahoe 2012-2014 (w/NAV)
• Trax 2015-2016

GMC

• Savana 2013-2015 (w/NAV) (RPO:UYS)
• Sierra 2012-2013 (w/NAV)
• Sierra 2500/3500 2014
• Terrain 2010-2017
• Yukon XL 2012-2014 (w/NAV)
