Complete Tuning Control

There are 4 inputs and 6 outputs, including front, rear and subwoofer, and the front and rear outputs can be delayed independently up to 10ms. Full tuning control settings are adjusted via a smart device application for tablets or mobile phones and can be password-protected once set up. Once tuning has been completed, installers can password-protect their settings to prevent anyone else from adjusting, and the information is stored for future recall.

Features:

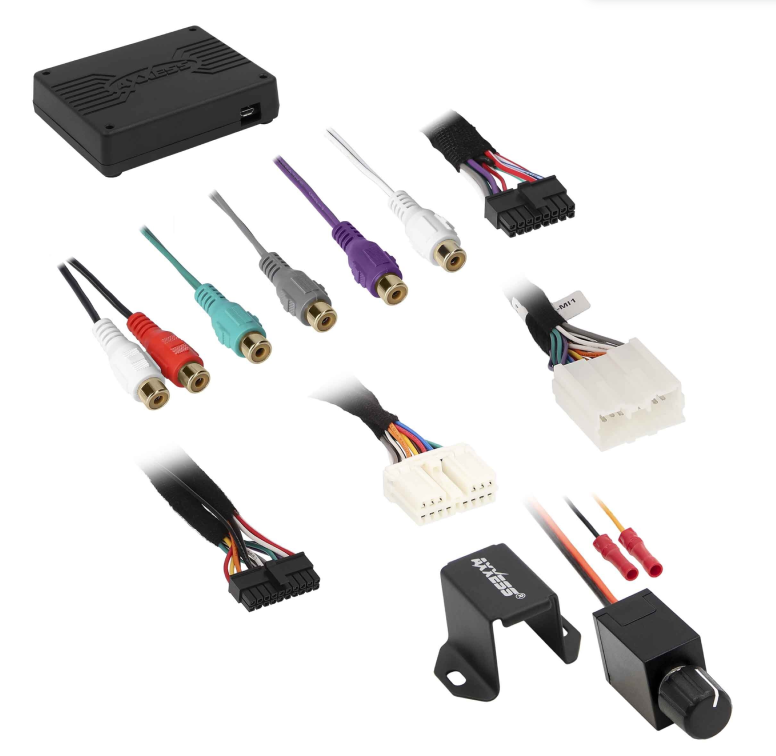

• Package includes the AXDSP-L and vehicle-specific T-harness
• 15-band graphic EQ or 5-band Parametric EQ
• Selectable high pass, low pass, or bandpass filters on each channel
• 4 inputs and 6 individually assignable outputs
• Independent equalization on each of the 6 outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Each channel can be delayed independently for up to 10 ms
• Easy behind the radio installation in most applications
• Can be used with OE and aftermarket radios
• Clipping detection and limiting circuits
• Internal header port for adding interface modules
• Bass knob included
• Retains factory chimes, including parking sensor and cross path detection alerts with adjustable chime level
• Designed for non-amplified models
• Settings adjusted wirelessly in a smart device application (tablet or mobile phone)
• Read, write, and store configurations for future recall
• Password-protect feature is available in the mobile app
• Micro “B” USB updatable
• 1-year limited warranty

Vehicle Applications:

Mitsubishi

• Diamante Wagon 1993-1995
• Eclipse 1995-2012
• Eclipse Spyder 1995-2012
• Endeavor 2004-2011
• Galant 1994-2012
• Lancer 2002-2007
• Mirage 1997-2002
• Montero 1993-2006
• Montero Sport 1997-1999
• Outlander 2003-2006
