Descriptions

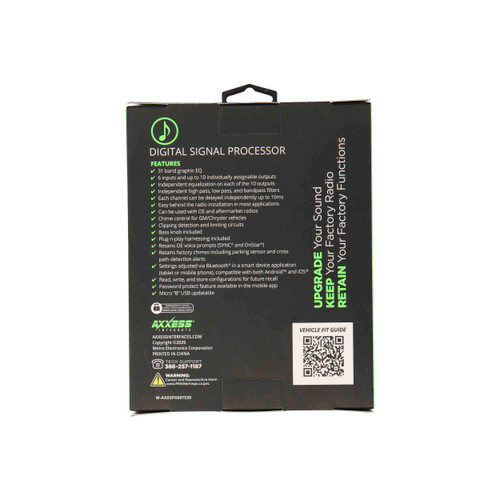

About: Axxess AXDSPX-GL1 DSP Data Interface with Pre-Wired Harness for Select 2006-2012 GM Vehicles

Overcome the factory radio’s built-in “audio processing” with our patented digital signal processor, or “DSP”, vehicle-specific packages. Factory radios have built-in sound processing designed to make your mass-produced factory speakers sound as good as they can without breaking. This means that if you upgrade to aftermarket speakers, your factory radio will process the sound according to the factory settings and your system just won’t sound as great as you hoped it would. To remove the limitations of the factory radio and get clean signals for aftermarket audio gear, you will need a sound processor like our line of patented DSP products. Our DSP is unlike any other on the market offering not only serious sound improvements but retains many of the features commonly lost when upgrading a sound system.

Features:

• Designed for amplified and non-amplified systems
• Package includes the AXDSP-X interface and vehicle-specific T-harness
• Internal header port for adding interface modules
• Install location: At the factory radio
• Micro “B” USB updatable
• 1-year limited warranty

Specifications:

• Selectable 31-band Graphic EQ or 5-band parametric EQ on each channel with high pass, low pass, and bandpass filters
• 6 inputs and 10 individually assignable outputs
• Selectable slope (12, 24, 36, or 48db per octave)
• Selectable Graphic or Parametric EQ
• Independent equalization on each of the 10 outputs
• Each channel can be delayed independently up to 10 ms
• Chime control for GM vehicles
• Clipping detection and limiting circuits
• Bass knob included
• Retains OE voice prompts (OnStar®) if vehicle is equipped
• Retains factory chimes, including parking sensor and cross path detection alerts if vehicle is equipped
• Settings adjusted wirelessly in the free AX-DSP-XL app available for smartphones and tablets
• Easy behind the radio installation
• Can be used with factory and aftermarket radios
• Read, write, and store configurations for future recall
• Password protect feature available in the app

Vehicle Applications:

BUICK

• Enclave 2008-2017 , Right of Accelerator pedal below center console.
• Lucerne 2006-2011 , Behind Rear Seat.

CADILLAC

• DTS 2006-2011 , Driver Side behind rear Seat Back
• Escalade 2007-2011 , Below Center Console.
• SRX 2007-2009 , Left Rear Quarter Panel.

CHEVROLET

• Avalanche 2012-2013 , Non-NAVUnder Center Console.
• Avalanche 2007-2011 , Under Center Console.
• Captiva Sport 2012-2015 , Right Rear Quarter Panel.
• Equinox 2007-2009 , Right Rear Quarter Panel.
• Express 2016-2020 , N/A
• Express 2008-2015 , (-UYS)N/A
• Impala 2006-2013 , Rear Deck.
• Impala Limited 2014-2016 , Rear Deck.
• Monte Carlo 2006-2007 , Rear Deck, Mounted Underneath.
• Silverado 2012-2013 , Non-NavBelow Center Console.
• Silverado 2007-2011 , Below Center Console.
• Silverado 2500 / 3500 2014-2014 , Non-NAVBelow Center Console.
• Suburban 2012-2014 , Non-NAVBelow Center Console.
• Suburban 2007-2011 , Below Center Console.
• Tahoe 2012-2014 , Non-NAVBelow Center Console.
• Tahoe 2007-2011 , Below Center Console.
• Traverse 2009-2016 , Driver Knee Bolster.

GMC

• Acadia 2007-2016 , Driver’s Side of Dash, Above Kick Panel.
• Acadia Limited 2017-2017 , Driver’s Side of Dash, Above Kick Panel.
• Savana 2016-2020 , N/A
• Savana 2008-2015 , (-UYS)N/A
• Sierra 2012-2013 , Non-NavBelow Center Console.
• Sierra 2007-2011 , Below Center Console.
• Sierra 2500 / 3500 2014-2014 , Non-NavRear Passenger Compartment Below Rear Window.
• Yukon / XL 2012-2014 , Non-NAVBelow Center Console.
• Yukon / XL 2007-2011 , Below Center Console.

HUMMER

• H2 2008-2009 , Rear Left, Behind Quarter Panel.

SATURN

• Outlook 2007-2010 , Under Drivers Side Dashboard.
• Vue 2008-2010 , Rear Right Luggage Compartment, Behind Subwoofer.
