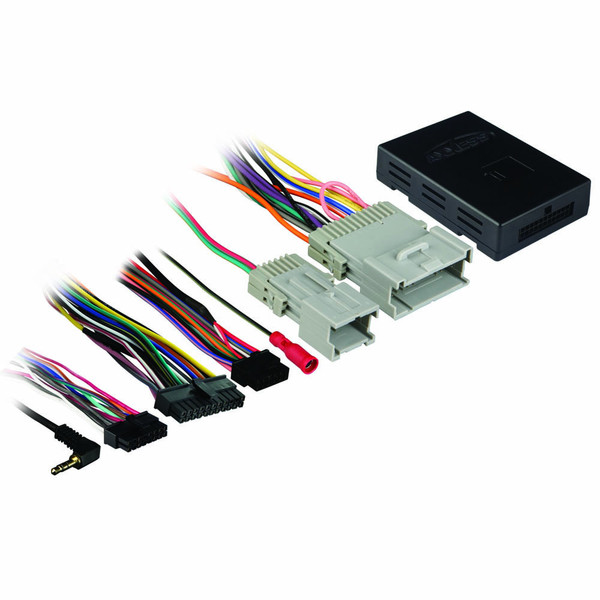

About: Axxess AXGM-01 GM Data Interface 2000-2013

The AXGM-01 interface is designed to allow the user to replace the OEM radio with an aftermarket unit in non-amplified GM vehicles and retain full functionality of the Onstar system as well as all safety and warning chimes. The AXGM-01 will also retain the retained accessory power convenience features. This interface has the capability of adjusting chime and Onstar volumes as well. In addition to these features, the AXGM-01 now has the required outputs for the installation of a navigation radio.

Product Specifications:

• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (retained accessory power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Pre-wired AXSWC harness (AXSWC sold separately)
• Retains chimes to the factory speaker
• Adjustable chime level
• Retains OnStar / OE Bluetooth
• Adjustable OnStar level
• Designed for non-amplified models, or when bypassing a factory amp *
• Retains balance and fade
• AXUSB-CBL updatable (sold separately)
• Part number formerly known as GMOS-01

Vehicle Application:

Buick

• Century: 2004 - 2005
• Lacrosse: 2005 - 2009
• Rainier: 2004 - 2007
• Regal: 2004
• Rendezvous: 2002 - 2007
• Terraza: 2005 - 2007

Cadillac

• Escalade: 2003 - 2006 (See note below)
• Escalade ESV & EXT: 2003 - 2006 (See note below)

Chevrolet

• Avalanche: 2003 - 2006
• Cavalier: 2000 - 2005
• Colorado: 2004 - 2012
• Corvette: 2005 - 2016 (See Note Below)
• Express: 2003 - 2007
• Impala: 2000 - 2005
• Kodiak C4500-C8500: 2003 - 2009
• Malibu: 2001 - 2003
• Malibu Classic: 2004 - 2005
• Monte Carlo: 2000 - 2005
• Silverado Classic: 2007
• Silverado: 2003 - 2006
• SSR: 2003 - 2006
• Suburban: 2003 - 2006
• Tahoe: 2003 - 2006
• Trailblazer: 2002 - 2009
• Uplander: 2005 - 2008

GMC

• Canyon: 2004 - 2012
• Envoy: 2002 - 2009
• Savana: 2003 - 2007
• Sierra: 2003 - 2006
• Sierra Classic: 2007
• TopKick C4500-C8500: 2005 - 2009
• Yukon: 2003 - 2006
• Yukon XL: 2003 - 2006

Hummer

• H2 (See Note Below)
• H3 and H3T: 2006 - 2010

Isuzu

• Ascender: 2003 - 2008
• H-Series: 2003 - 2008
• I-Series: 2006 - 2008

Oldsmobile

• Alero: 2001 - 2004
• Bravada: 2002 - 2004
• Intrigue: 2002

Pontiac

• Aztec: 2001 - 2005
• Grand Am: 2001 - 2005
• Grand Prix: 2004 - 2008
• Montana SV6: 2005 - 2006
• Sunfire: 2000 - 2005

Saab

• 9-7x: 2005 - 2009

Saturn

• Relay: 2005 - 2007

Note:

*If the vehicle is amplified, either use the AXGM-04 interface, or bypass the amplifier
