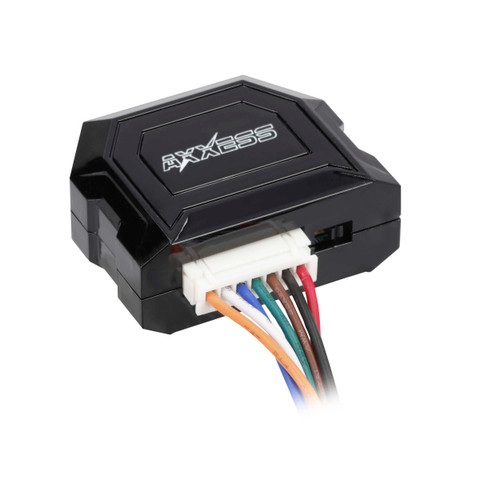

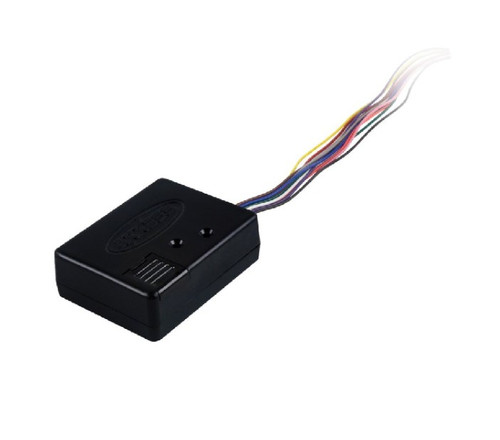

About: Axxess TRIGGER Universal Trigger Module

The Trigger is a universal module that provides 15 different preset functions that are activated from a positive or negative trigger. In addition to the preset features the Trigger has 8 custom modes with customizable settings that allows the installer to utilize their imagination.

Features:

• Universal Trigger Module
• Provides 15 different functions activated from a positive or negative trigger
• E-Brake Emulator emulates an E-Brake signal for use in RV’s, off road vehicles, and exhibition vehicles
• Retained Accessory power will turn on when accessory turns on, and will not turn off until door opens or 10 minutes passes, whichever comes first
• Delayed Turn-On allows a 2 second delay before an amp turn on output is sent to the amplifier
• Low Voltage Turn-On provides 12 volts turn on from a low voltage source
• Latched Outputs allow the capability of making a pulsed signal a latched signal
• GMLAN Aftermarket Amp Turn-On provides an amp turn on LAN vehicles for adding an aftermarket amp
• Active Edge Pulse Generator allows the capability of making an input signal a pulse signal
• Turn-Off Delay allows the amp turn-off to be delayed by two seconds
• Double Pulse Latch creates a latched signal from a double pulse signal
• Double Pulse to One Second Output converts a double pulse output to a single pulse output
• Theft Detection/ Closed Loop Trigger when connected, if item loses ground the Trigger will send out a 12 volt constant signal which can be hooked to an audible device
• Channel Expander gives the ability to add additional channels to an alarm
• Simple Data Detector produces a positive or negative signal out when data is detected
• Long Delayed Turn-Off will keep headlights on for 1 minute after ignition is turned off
• Dome Light Delay keeps dome light on for 30 seconds after ignition is turned off
• Ability to custom program the Trigger using the Trigger program
• Custom Program Modes:
  •  Channel Expander (Latched) measures pulses that occur during 5 second interval
  • Channel Expander (Pulsed) measures pulses that occur during 5 second interval
  • Delayed Turn-Off connects active high input to pin 9, or active low input to pin 10
  • Delayed Turn-On connects active high input to pin 9, or active low input to pin 10
  • Generic three output delay/pulse width, edge driven
  • Generic three output delay/pulse width, level driven
  • Square Wave Generator (honks horns and blinks lights)
  • Multiple Pulse Generator will produce multiple pulses on all outputs
