Descriptions

About: B2 Audio MANI 600.1 Mini Monoblock Amplifier

Stealth, sleek, smooth & surprising. The Mani amplifiers ushers in an entirely new statement. Call it nano, mini or micro amplifiers, we call them Mani 600’s. This new platform introduces several user & installer friendly features. Auto detect remote, signal detection & high level speaker inputs brings these small amplifiers into a category of their own!

Stealth

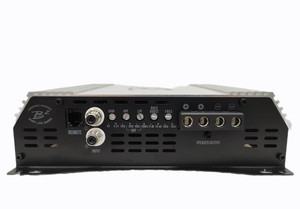

The Mani deviates from the traditional end panel design, with power, speaker & adjustments on each side of the amplifier. Inspired by the Ref Four SQ amp, Mani’s also have a single front panel layout for all connections. But with a slight twist, as the adjustments has been top mounted for easier access. All controls are well hidden behind a smoked panel, giving the amplifier a sleek and stealthy look..

Octaves & Levels

In search of accuracy? With a 24 dB slope per octave, the Mani amplifiers offers steep attenuation from your cut off point of your crossover. Simplified, the signal output at 25 Hz will be 72 dB less than a selected 200 Hz cut off (3 octaves 200/100/50). Crossover spanning from 20 Hz all the way up to 5000 Hz, gives you the total control of your sound preference.

The Mani amplifiers shares the same compact dimensions. Only 10.6″ x 6.45″ x 2.28″ / 26.9 cm x 16.4 cm x 5.8 cm, makes them fit everywhere. Oem installs in bikes, cars or other vehicles, might have original head units as an integrated part of the system making it hard to change. The high level feature on both Mani amplifiers handles that. The auto power on detection makes it even simpler installing these amps in oem systems. It removes the need for a 12 V remote signal.

600’s

The 600 name relates to the total power output derived from all channels. Most monoblocks are stable into 1 Ω, but the Mani 600 is NOT a 1 Ω amplifier.

Which is not a drawback, as much as it is an advantage to the Mani 600. The circuit configuration is optimized for maximum power at both 4 and 2 Ω. Instead of a very common 1 Ω design, where power would be 200 W, 400 W and 600 W at 4/2/1 Ω. The Mani 600 monoblock uses a partially regulated design. Thus, the output at 4 Ω is an impressive 450 W and 600 W at 2 Ω! Making it a perfect match for all the RAGE/RAMPAGE 6.5 & 8″ woofers, even sufficient for the RIOT series of subwoofers.

Specifications:

• Frequency Response: 10 Hz ~ 500 Hz
• Signal to Noise Ratio: >90 dB
• Input Sensitivity: 5 V ~ 0.35 V
• Low Pass Crossover 24 db/ Oct: 50 Hz ~ 500 Hz
• High Pass Crossover 24 dB / Oct: 5 Hz ~ 40 Hz (Subsonic)
• Damping Factor: >400
• Power Terminal gauge: 6 GA
• Fuse Rating: 70 A
• Operational voltage: 10 V ~ 14.5 V
• Dimensions: 10.6" x 6.45" x 2.28" (269 x 164 x 58 mm)
• Power Handling:
• Power @ 4 Ω 14.4 V: 1 x 450 w
• Power @ 2 Ω 14.4 V: 1 x 600 w
