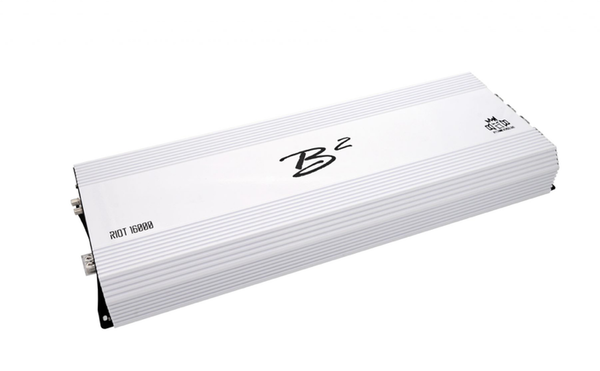

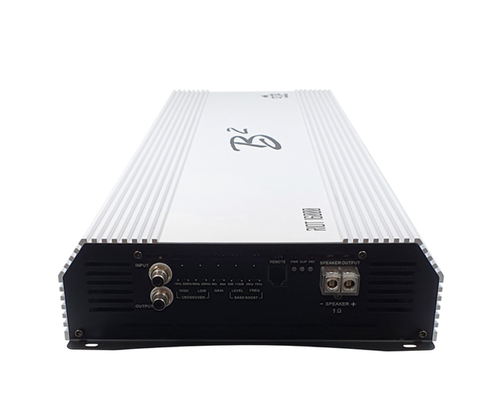

About: B2 Audio RIOT 16000 Monoblock Amplifier

The RIOT amplifier line expands with this heavyweight. Based on the same fullbridge tech as the RIOT 7500, but with twice the power and performance. Rated at 16,000 watts and with over 175 volts of output, this bad boy packs a punch equivalent to a TKO.

GOT CURRENT

With this much power comes the responsibility of having the current to back it up. Don’t cheapen on your electrical and buy the biggest amp you can to save some money. In the long run it is a catastrophe waiting to happen. Plan adequately before entering the big boy league of amps. It is critical that you have proper power capacity.

The 1200 A fuse rating might have you fooled, but the RIOT16000 has a higher efficiency circuit vs traditional half bridge designs. At peaks the amp can easily exceed the fuse rating by 30%, so I guess it makes sense having more batteries than you initially planned for?

SURFBOARD

8000 watts is still considered a big amplifier today, but 8000 watts at 4 ohm goes beyond the sanity of mankind! A surfboard you may think, actually no. The amplifier is still compact, a mere footprint of 24.4″ x 8.85″ / (62 x 22.5 cm) makes the amplifier fit in most installs today.  To increase the surface area of the heatsink, the RIOT 16000 has fins on the top, slightly deviating from the sleek heatsink of the M and Zero series. In addition there’s multiple high speed fans positioned in a suck and blow mode to help keep things cool when your voice coils aren’t!

**Even though it should be common knowledge by now, the fullbridge amps are not strapable. Basically because they are already bridged internally.  Due to the output inductor circuit design of the RIOT 16000, (optimized for greater power), it is not recommended to power up the amplifier WITHOUT a load on the speaker terminals. Failure to doing so could potentially cause a circuit malfunction  which will leave the amplifier stuck in protect.

Specifications:

• Frequency Response: 10 Hz ~ 20 KHz
• Signal to Noise Ratio: >80 dB
• Input Sensitivity: 5 V ~ 0.2 V
• Low Pass Crossover 12 db/ Oct: 80 Hz ~ 20 KHz
• High Pass Crossover 12 dB / Oct: 15 Hz ~ 500 Hz
• Subsonic Crossover 12 dB / Oct: 15 Hz ~ 500 Hz
• Bass Boost: 0 ~ 12 dB
• Bass Boost Frequency Range: 35 Hz ~ 70 Hz
• Damping Factor: >200
• Power Terminal gauge: 0 GA x 2
• Fuse Rating: 1200 A (Peak >1500A)
• Operational voltage: 9 V ~ 14.5 V
• Dimensions: 24.49" x 8.85" x 2.63" (620 x 225 x 67 mm)
• Power Handling:
• Power @ 4 Ω 13.8 V: 7000w
• Power @ 4 Ω 14.4 V: 8500w
• Power @ 2 Ω 13.8 V: 10500w
• Power @ 2 Ω 14.4 V: 12500w
• Power @ 1 Ω 13.8 V: 16000w
• Power @ 1 Ω 14.4 V: 16000w
