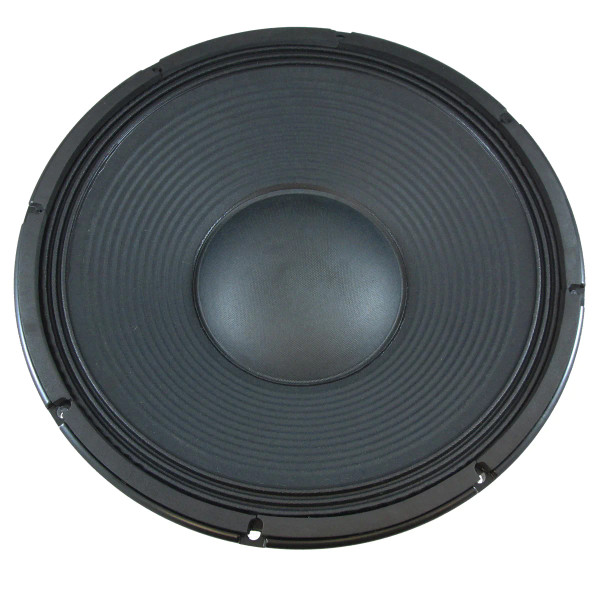

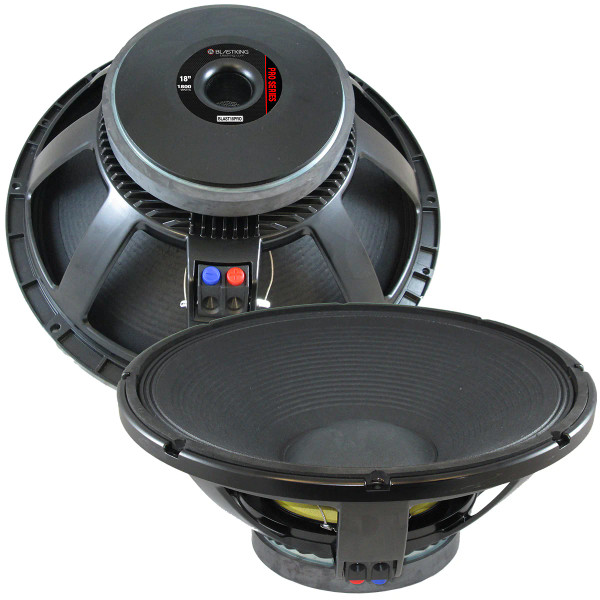

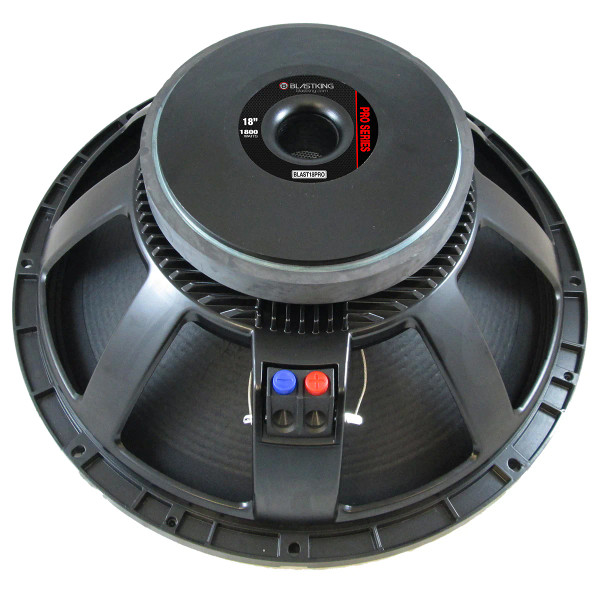

About: BlastKing BLAST18PRO 18" 900W RMS Midbass Speaker - 8 Ohms (Each)

The BlastKing Blast Pro series features our top of the line precision transducers. Starting from our Blast8 Pro all the way up to our Blast18 Pro, our high power transducers are all made in a die-cast aluminum basket, with a paper cone, and mounted on a ferrite magnet with a 4”copper voice coil. The high power rating, great frequency response, and low distortion make the Blast Pro series the perfect choice for both live and recorded music applications.

The Blast18 Pro is a ferrite magnet low frequency transducer capable of producing extremely low frequencies with absolute definition in professional sound reinforcement applications that require maximum output. Its 4” voice coil along with its forced air ventilation system dissipate heat and significantly increase power handling and long term reliability. The Blast18 Pro boasts an 1800 watt power rating with a frequency response between 35 Hz - 3 kHz making it an ideal choice for both live and recorded music.

Applications

The Blast18 Pro can be used for both live and recorded music applications. Capable of producing extremely low frequencies yet maintaining clarity and definition, the Blast18 Pro is the go to woofer when power and performance is required for your low frequency bass applications.

Features:

• 4” Voice Coil
• Rated Impedance: 8 ohms
• 900 Watts Rated Power Handling
• 1800 Watts Program Power
• 97 dB sensitivity
• 35 Hz - 3 kHz frequency response
• Forced air ventilation

Specifications:

• Nominal Basket Diameter: 18" (464 mm)
• Rated Impedance: 8 ohm
• Rated Power Handling: 900 Watts
• Program Power: 1800 Watts
• Sensitivity: 97 dB
• Frequency Range: 40Hz - 1.5Hz
• Magnet: 220 x 110 x 25 mm
• Minimum Impedance 5.1 ohm
• Voice Coil Diameter: 3.9" (99.2 mm)
• Voice Coil Material: Pisv

Thiele & Small Parameters:

• Resonance Frequency (Fs): 38Hz
• DC Resistence (Re): 5.1 ohm
• Mechanical Factor (Qms): 8.9
• Electrical Factor (Qes): 0.39
• Total Factor (Qts): 0.35
• BL Factor (BL): 23 T – m
• Effective Moving Mass (Mms): 198 gr
• Equivalent Cas Air Load (Vas): 212 liters
• Maximum Linear Excursion (Xmax): 5.5 mm

Mounting Information:

• Overall Diameter: 18.27" (464 mm)
• Bolt Circle Diameter: 17.6" (447 mm)
• Bolt Hole Diameter: 0.39" x 0.33"  (10" x 8.3" mm)
• Baffle Hole Diameter: 16.57" (421 mm)
• Depth: 7.26" (184.5 mm)
