Descriptions

About: Boss Audio BE10ACP.WX 10” Floating Touchscreen with Wireless Android Auto / Apple Carplay

Features:

• Digital media receiver with AM/FM tuner (does not play discs)
• 10.1" capacitive touchscreen display
• Single-DIN (2" tall) chassis
• Bluetooth for hands-free calling and audio streaming

Smartphone Features:

• Apple CarPlay compatible (wired or wireless)
• Android Auto compatible (wired or wireless)
• Front panel button to activate Siri or Google Assistant

Audio/Video Features:

• Plays WAV, MP3, WMA, and hi-res (192k/24-bit) FLAC files (see Details tab for full capabilities)
• Plays AVI, MKV, and WMV video files (see Details tab for full capabilities)
• Built-in DSP with time alignment
• 13-band EQ

Expandability:

• Works with SiriusXM SXV300 tuner (not included)
• Inputs: front USB-C input, rear USB input, rear A/V input (RCA), two camera inputs
• Outputs: 6-channel preamp outputs (4-volt front, rear, sub)

Other information:

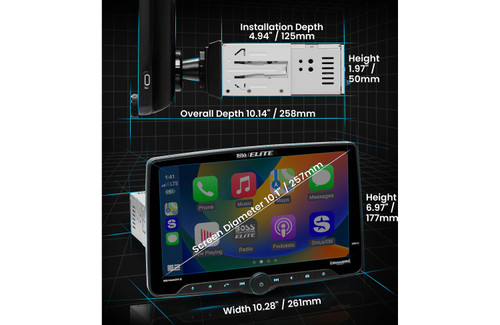

• Important Note — Monitor dimensions are 10.25" x 6.5625". Before ordering, check for possible interference with your dash and controls.
• Built-in internal amp (20 watts RMS/85 peak x 4 channels)
• Compatible with most factory steering wheel audio controls (adapter required)

What's in the Box:

• Floating touchscreen monitor
• Single-DIN source unit (15A fuse)
• Wiring harness
• SWC adapter cable
• Microphone w/ integrated bracket (attached 9.5' cable terminated by a stereo 3.5mm connector)
• WiFi antenna (pre-installed)
• GPS antenna (attached 59" cable terminated by Fakra connector)
• Antenna base sticker
• Trim-ring (pre-installed)
• Mounting sleeve (pre-installed)
• 2 Side brackets
• 8 ISO-screws
• Self-tapping screw
• Rear-support stud
• Hex-nut
• Flat washer
• Lock washer
• Rubber-boot
• Backstrap
• 2 Removal tools
• User's Manual
• Warranty/Registration Card
